PiServer Gallery

A Collection of images & videos from the PiServer Project

Yomi Ikuru

• 4 min read
PiServer Gallery

This is a collection of photos and videos of the activities & processes from design to finish, from the PiServer project.

Go to Videos

Photos

PhotoShoot

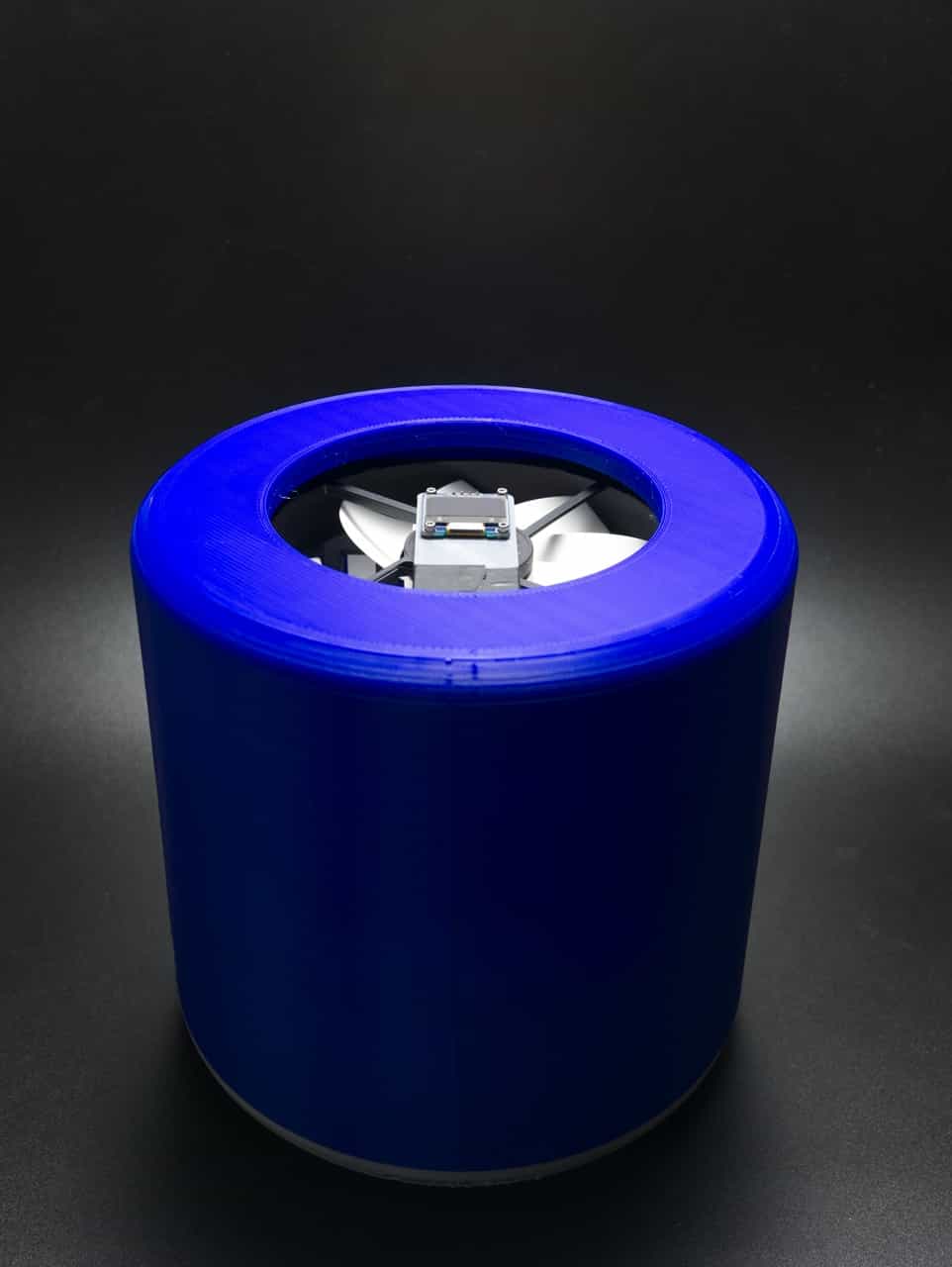

Built up PiServer 1.0

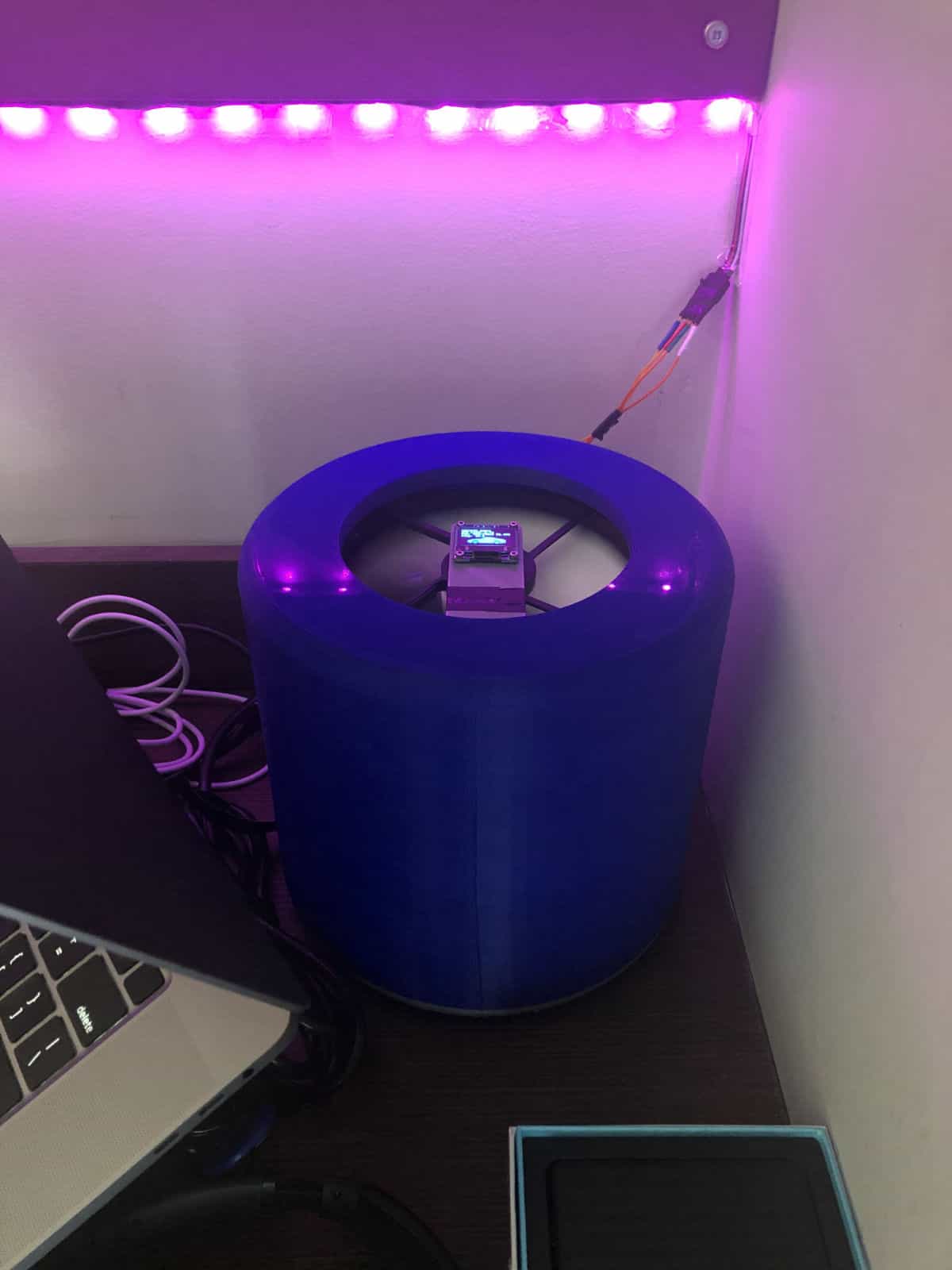

PiServer on my desk and powering an RGB LED light strip

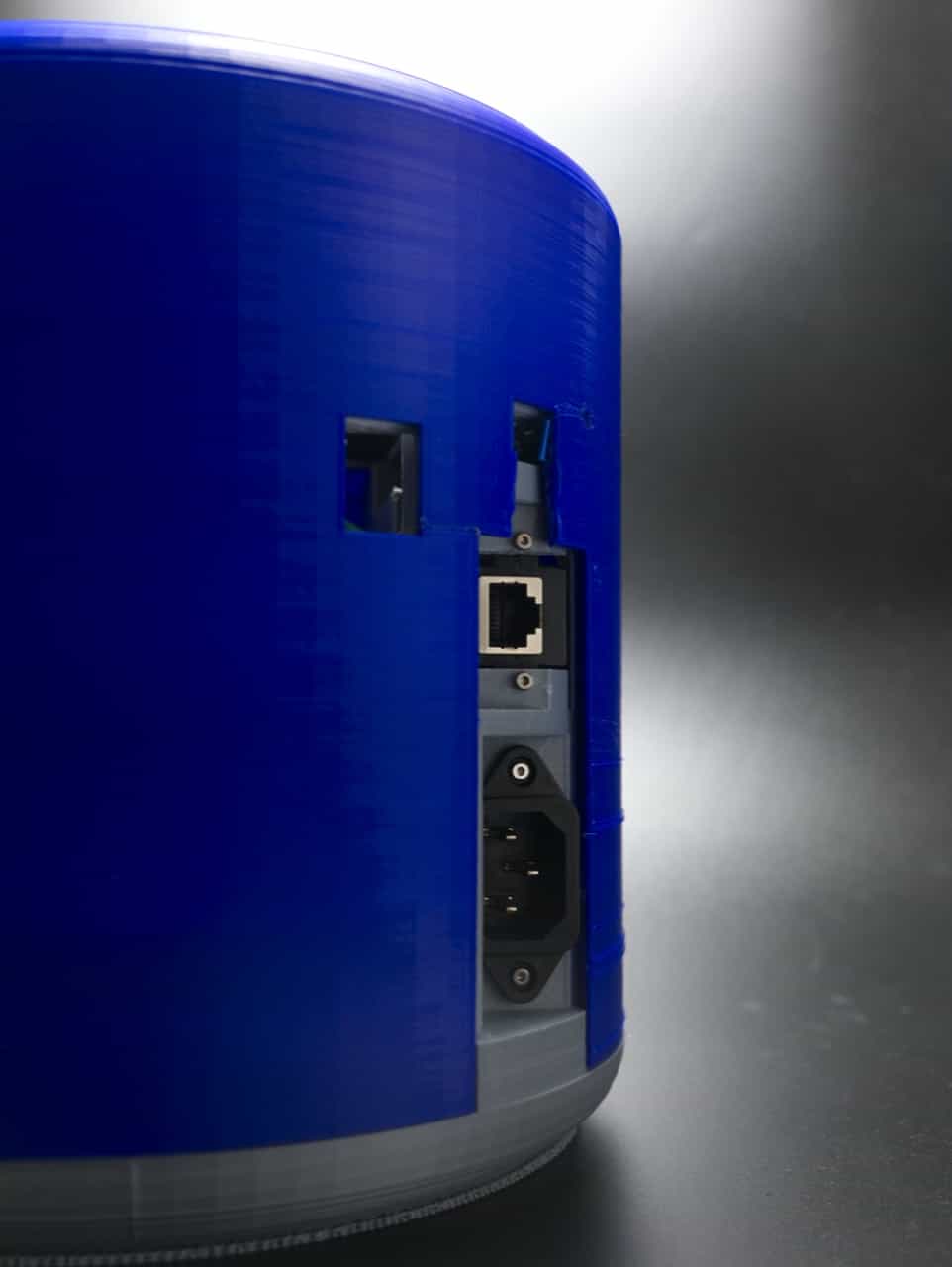

External ports

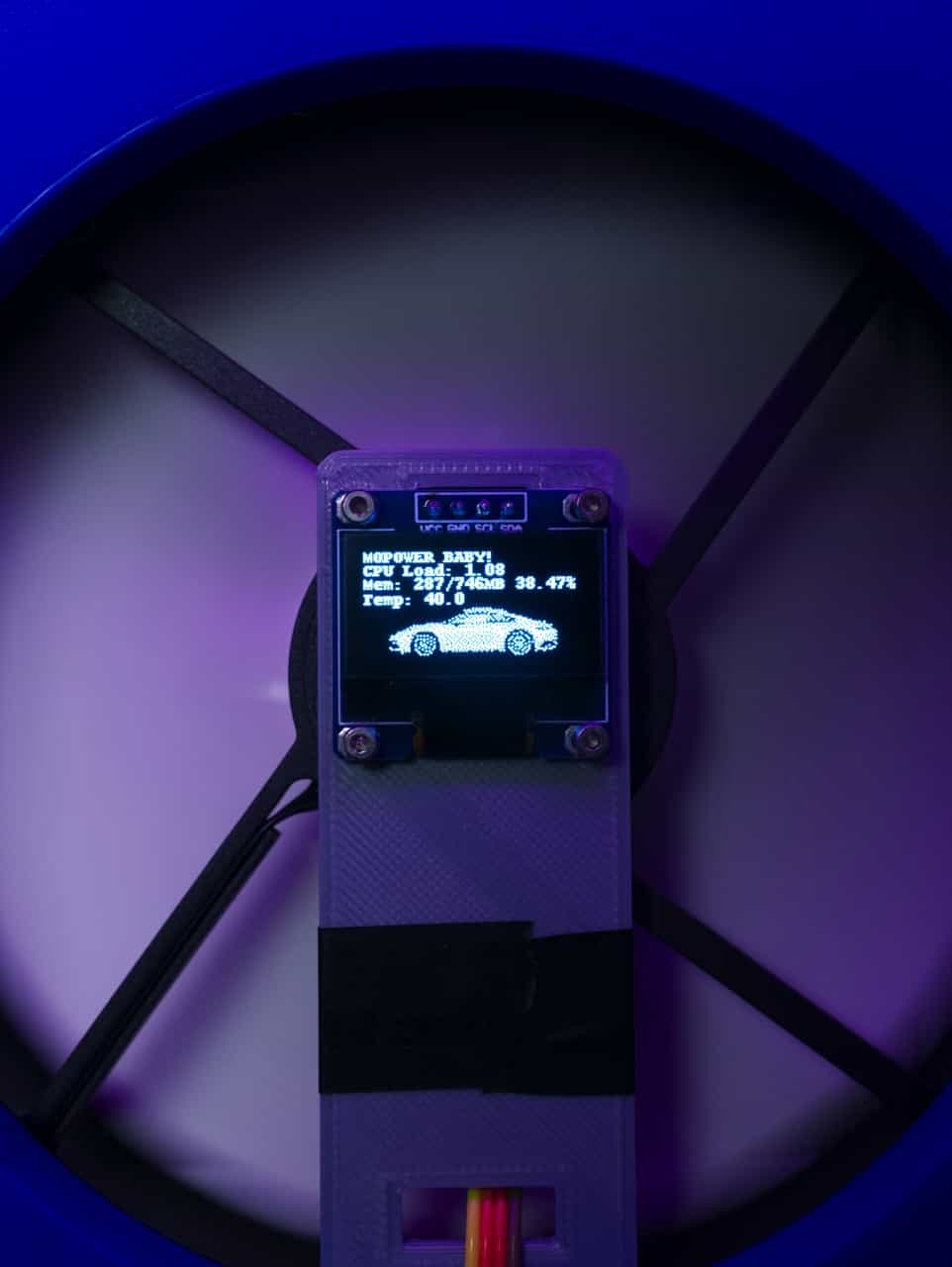

Top OLED display

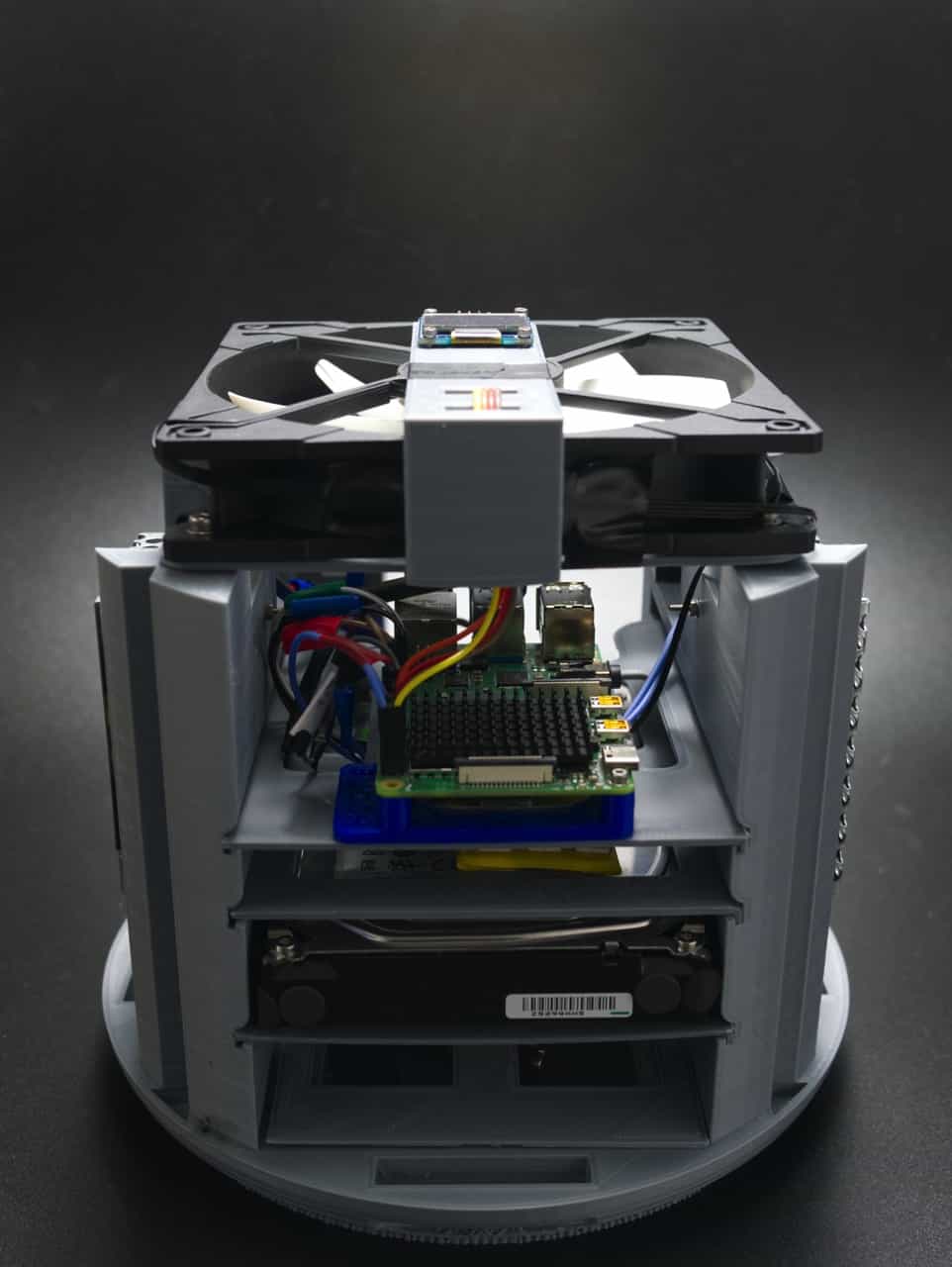

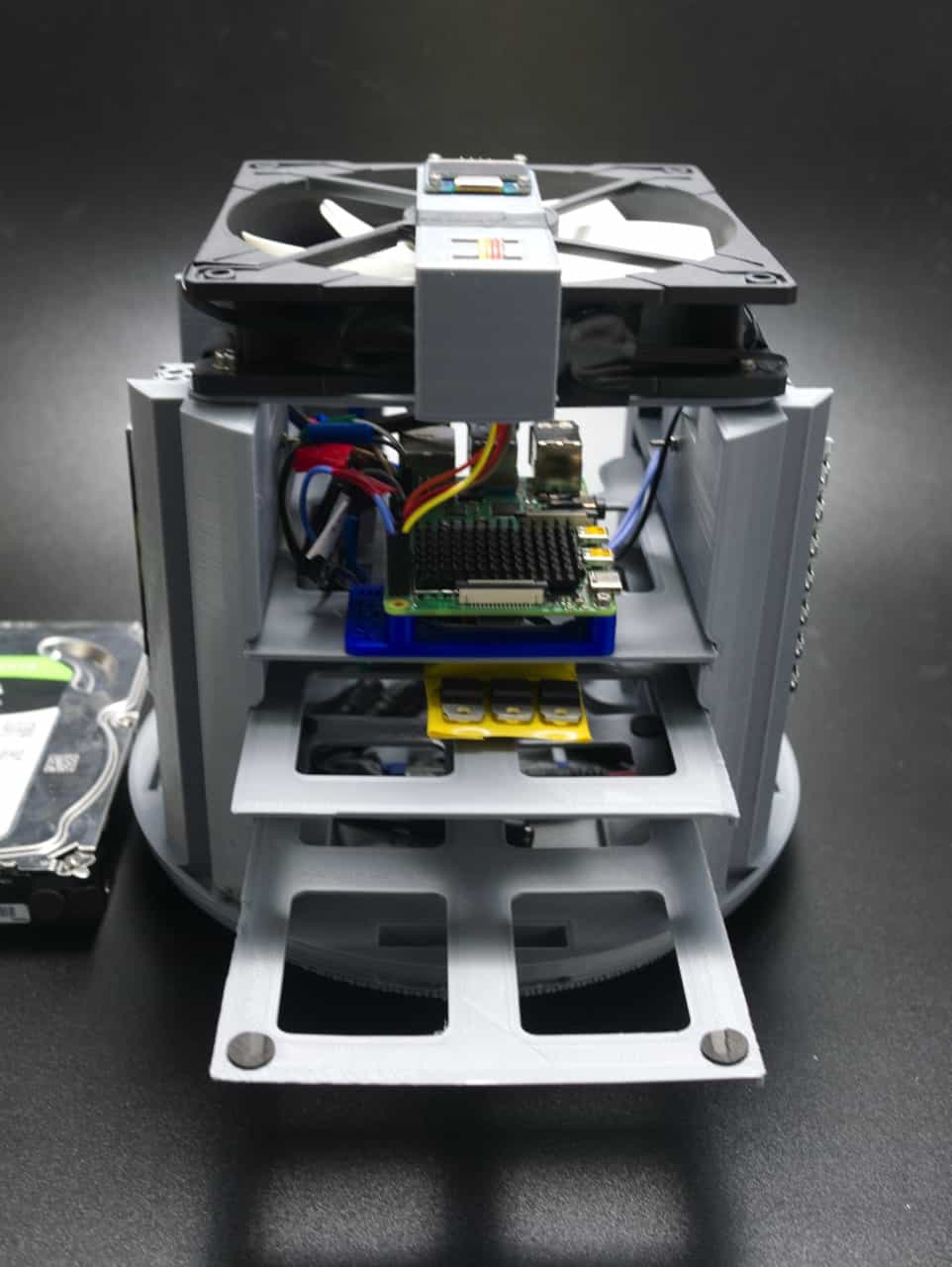

Front view
Left side view showing connectors, wiring and 12V PSU that powers the HDD and top fan
Front view showing tray design and 'yellow' covered MOSFETs for RGB LED control
HDD Tray with felt pads to reduce vibration
3.5 inch 2TB seagate iron wolf HDD on tray

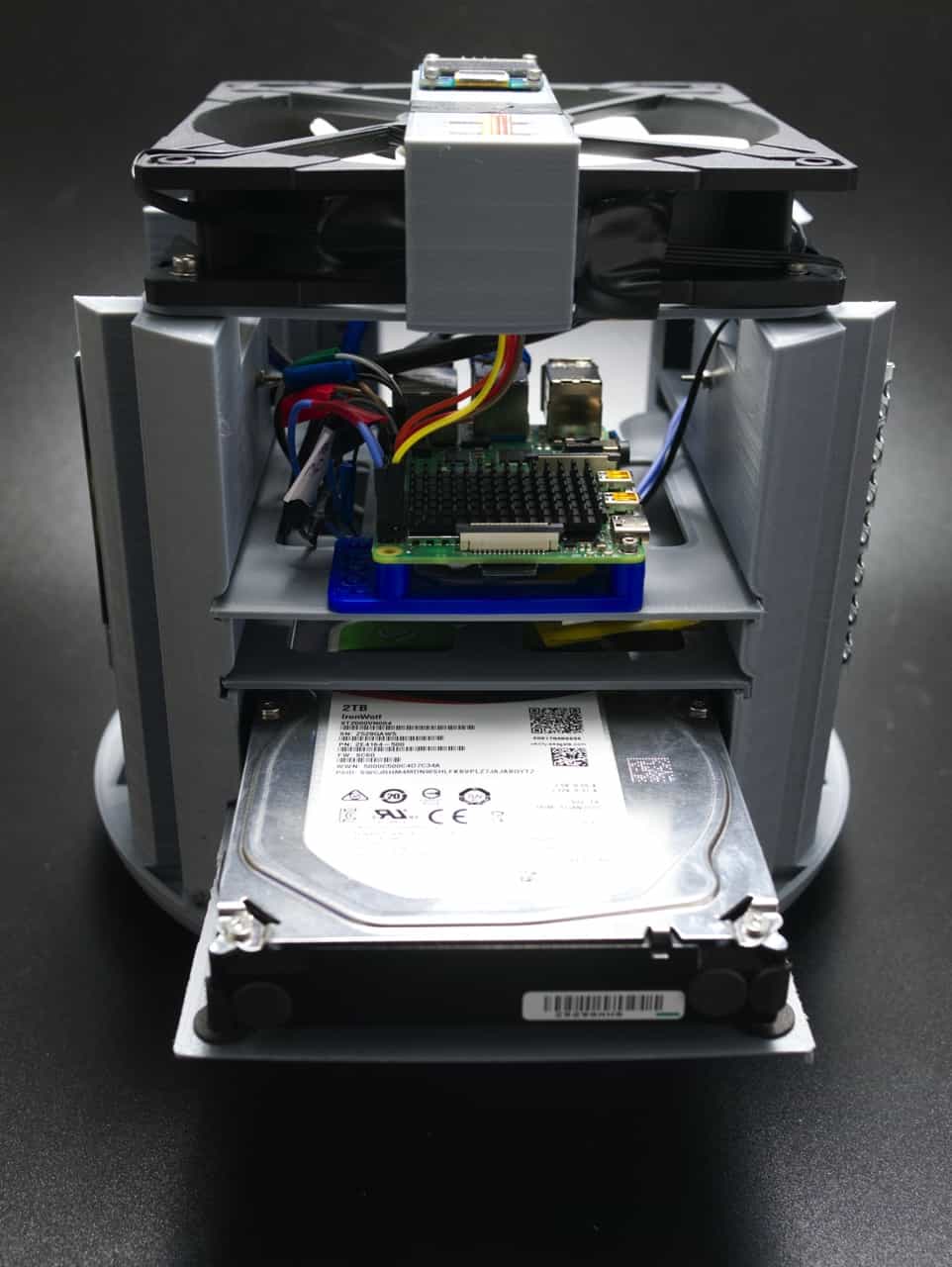

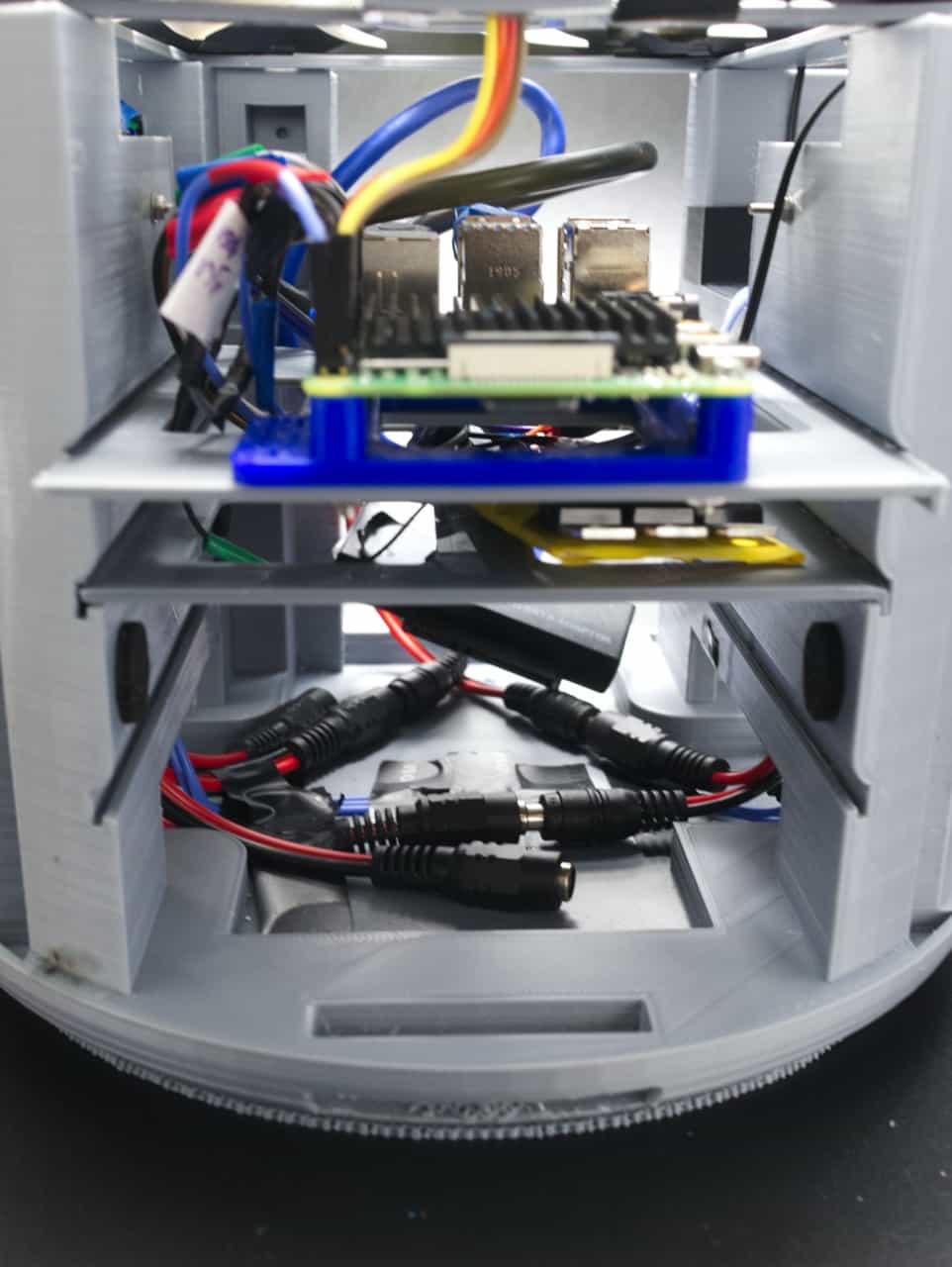

Front view showing Raspberry Pi and dc connectors in recessed cable area

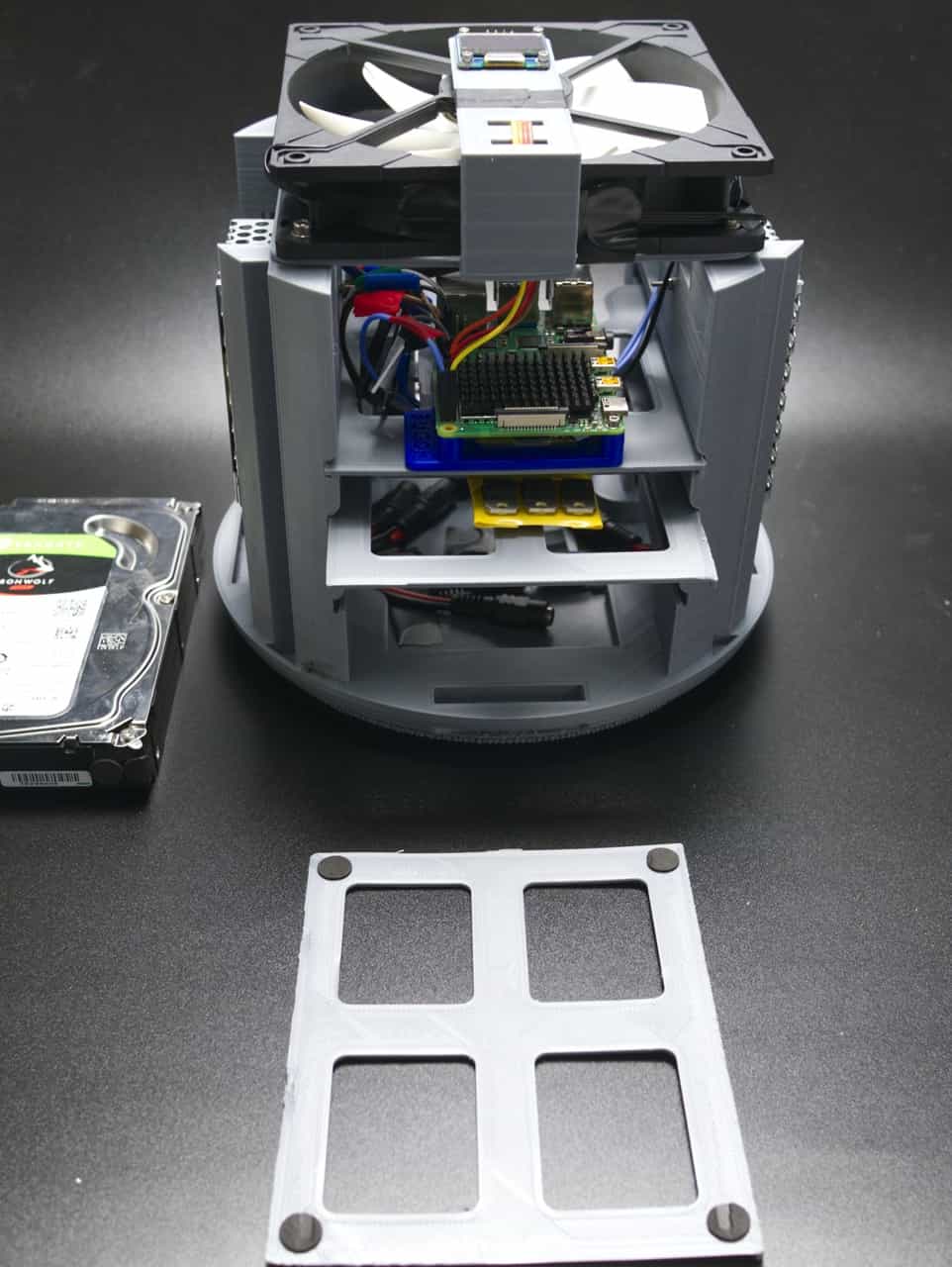

Bottom tray in place to partly cover cables

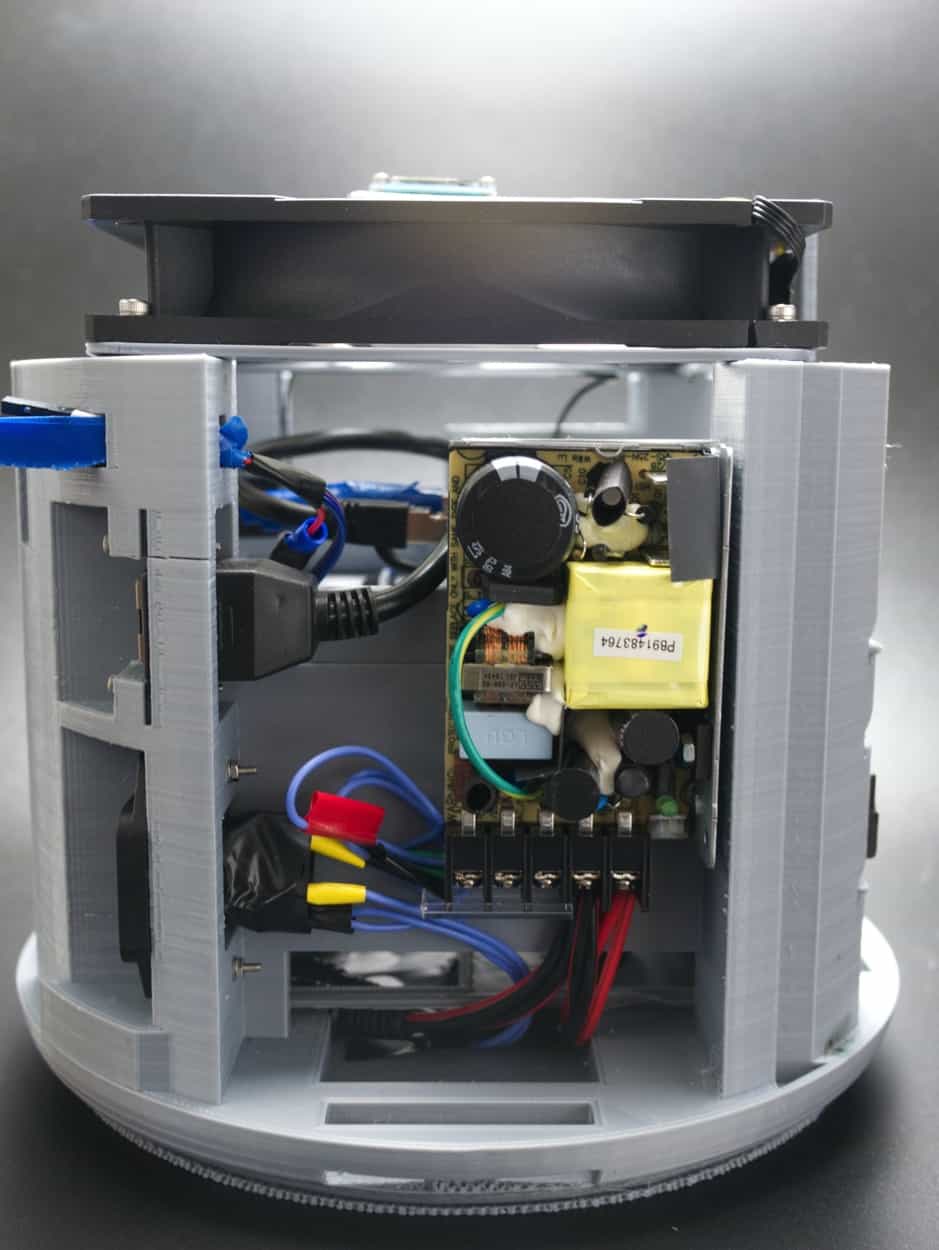

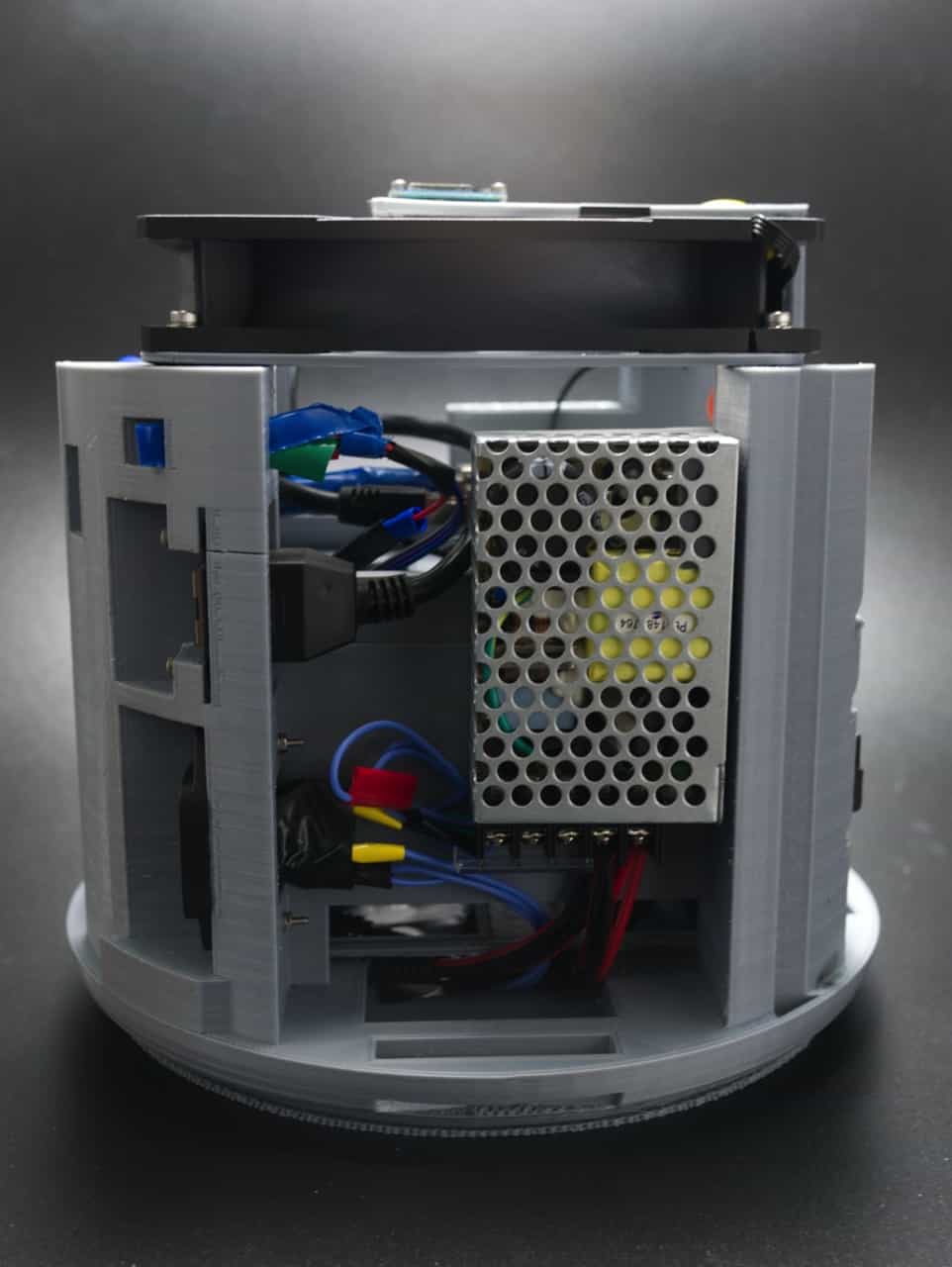

Left side showing 12V PSU with shroud removed

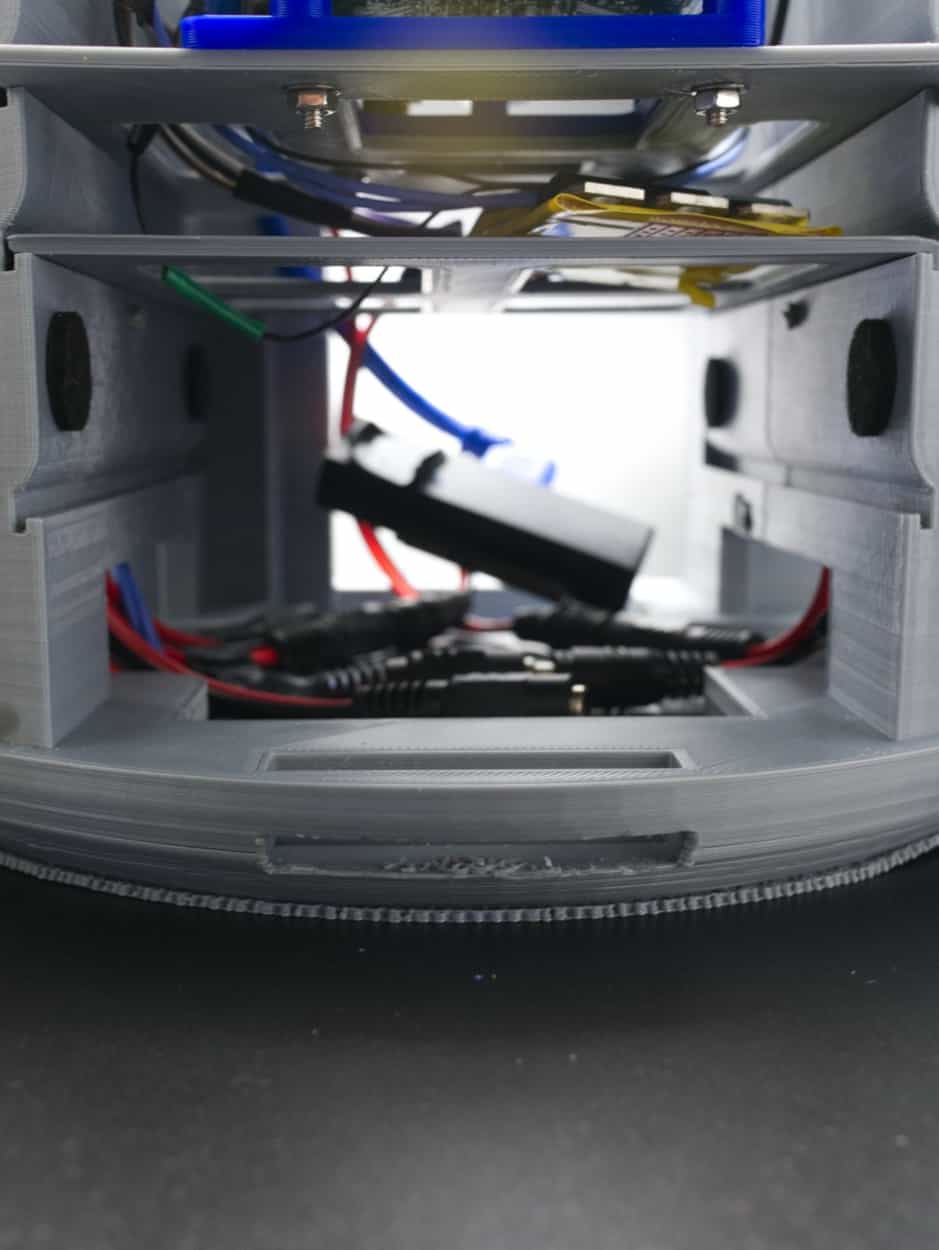

Front view showing 1 of 3 ventilation slits and felt pads in HDD compartment

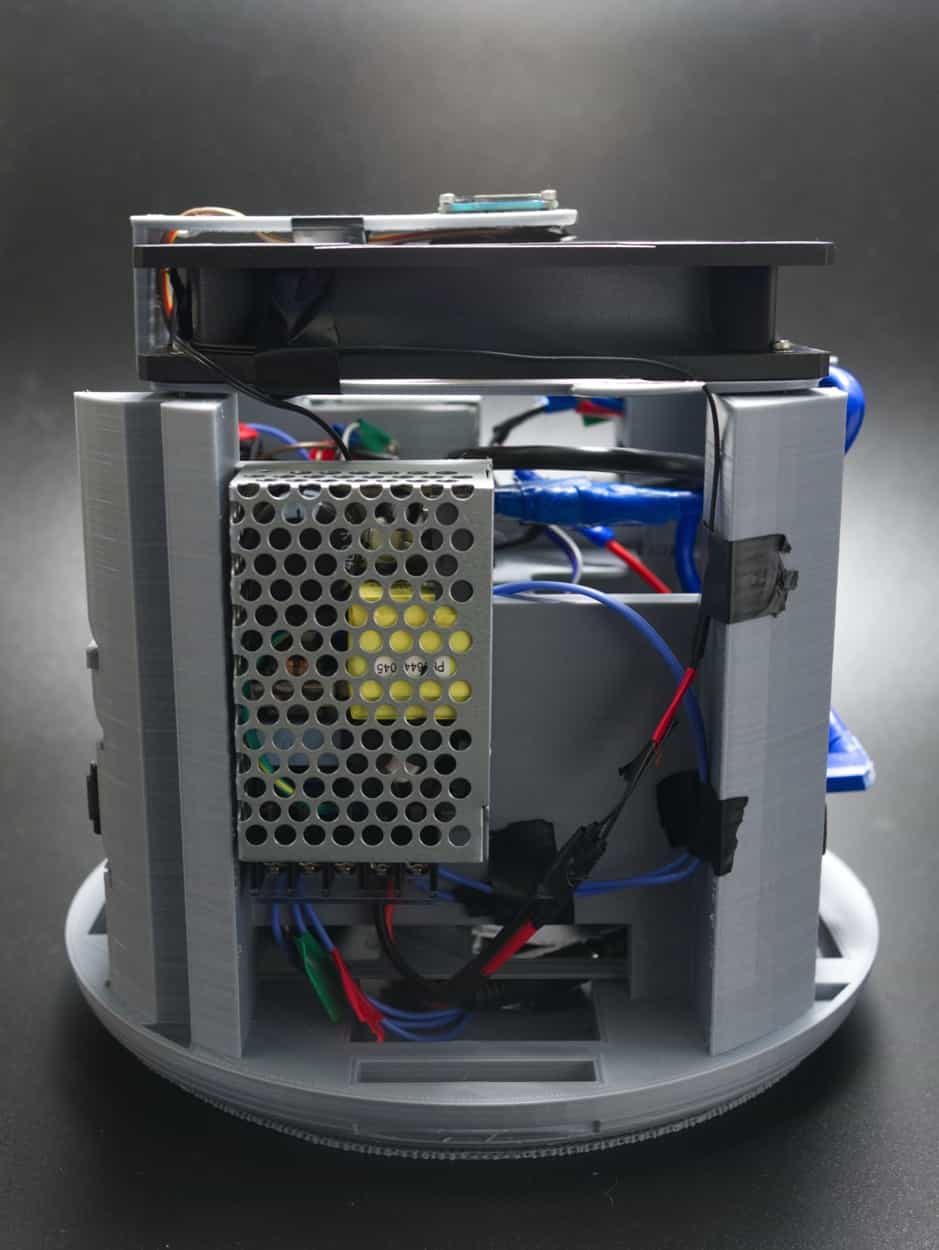

Right side showing 5V PSU that powers the Raspberry Pi 4
Rear view showing the inside amd cabling in PiServer

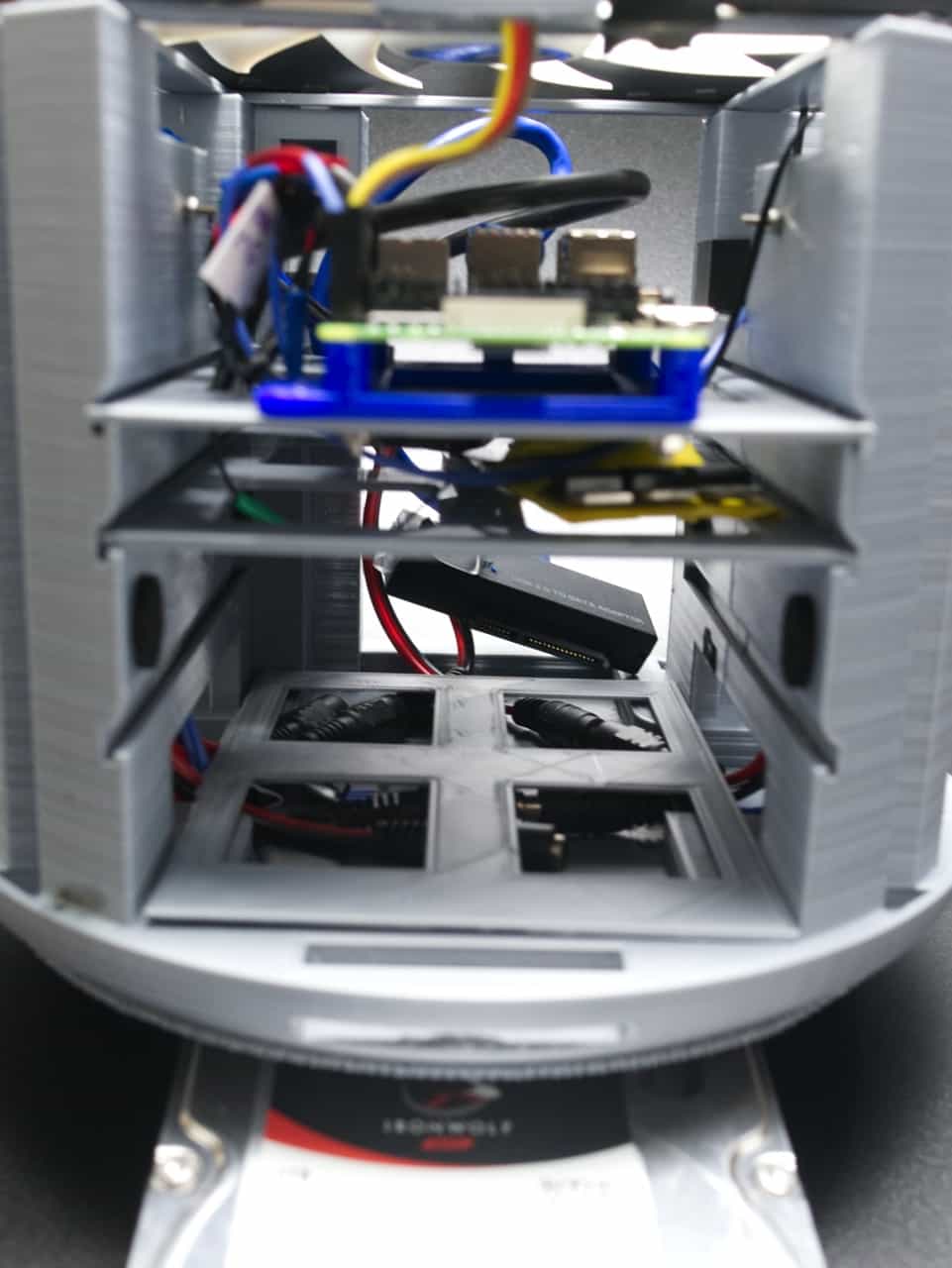

A closer look of the rear with the HDD taken out

Design

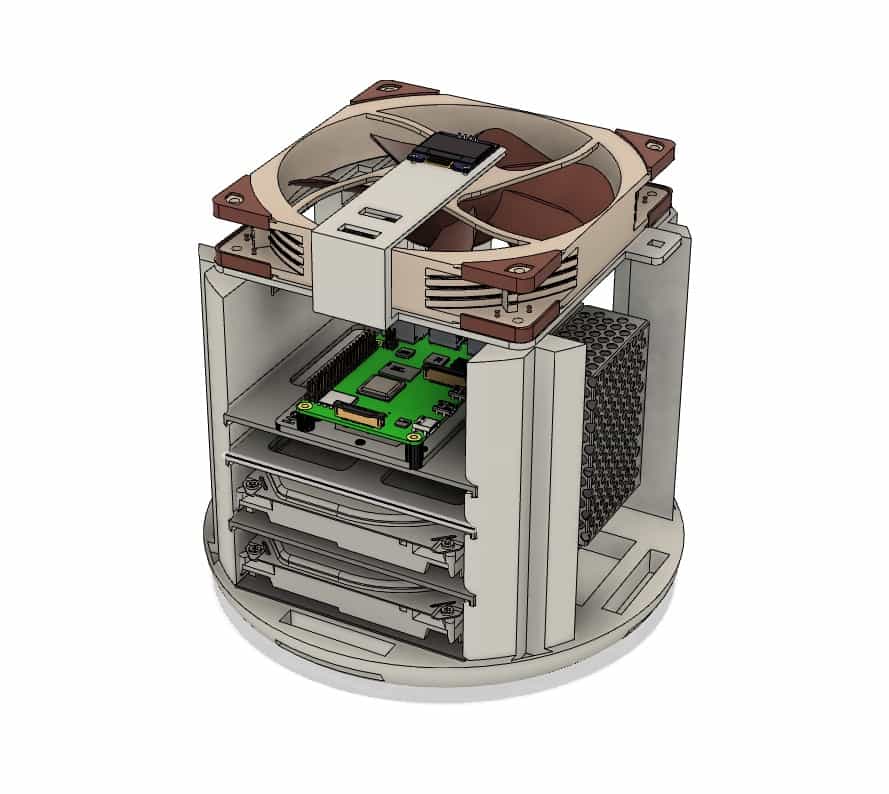

Built Piserver without casing. Space available for two 3.5 inch HDDs

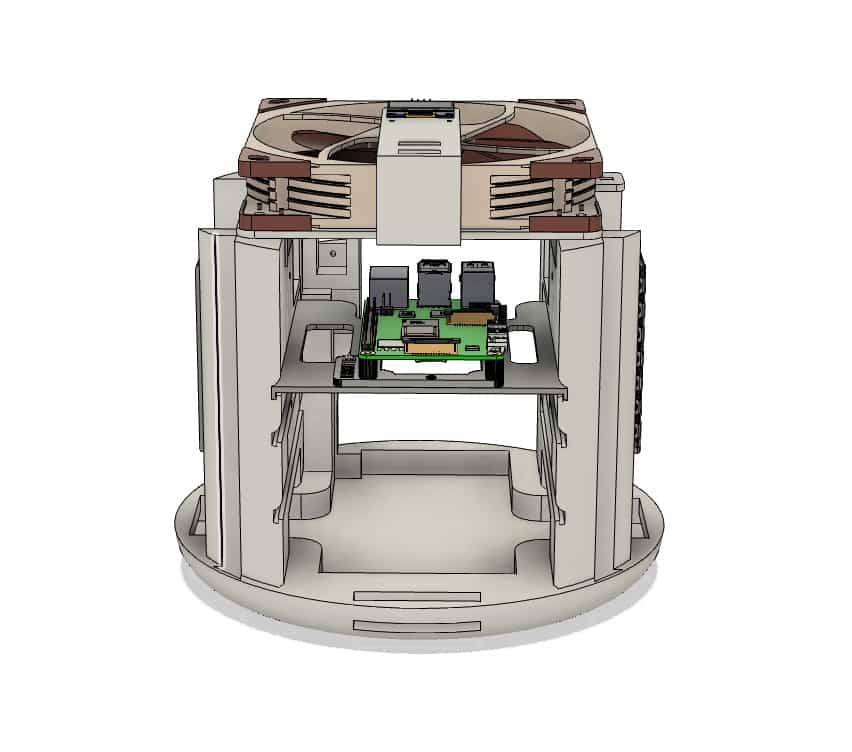

Front View with visible front airflow vent at the base of the chassis

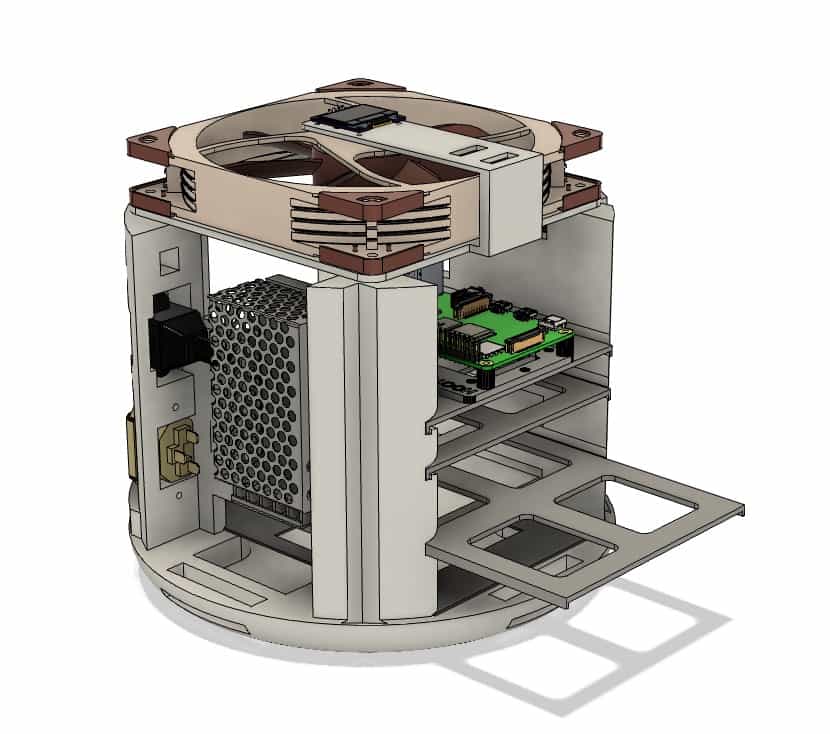

Left-side view showing 12V PSU, IEC connector and Ethernet adapter

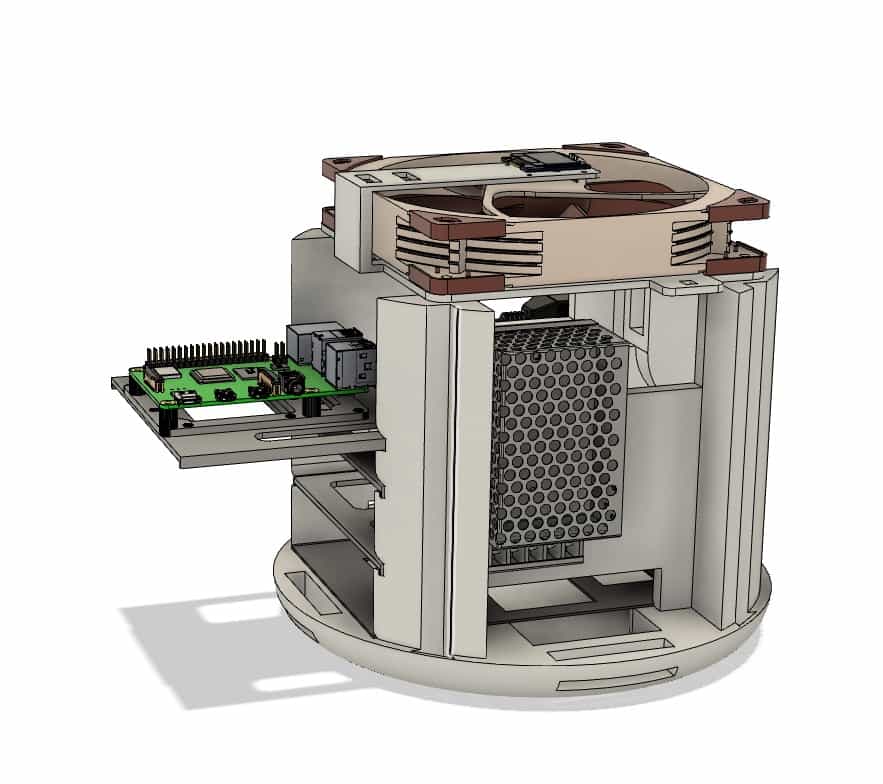

Right-side view showing 5V PSU and tray system with a Raspberry Pi mounted

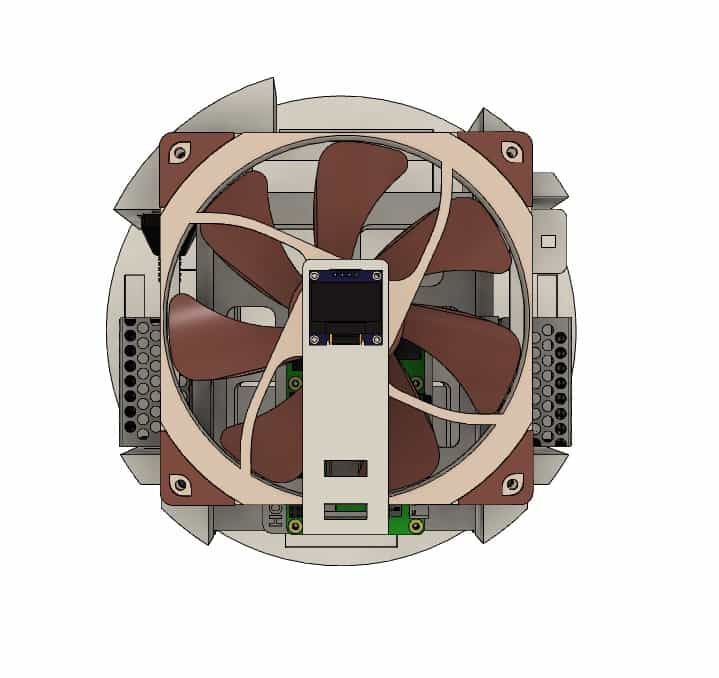

Top View showing a 140mm fan and an OLED display

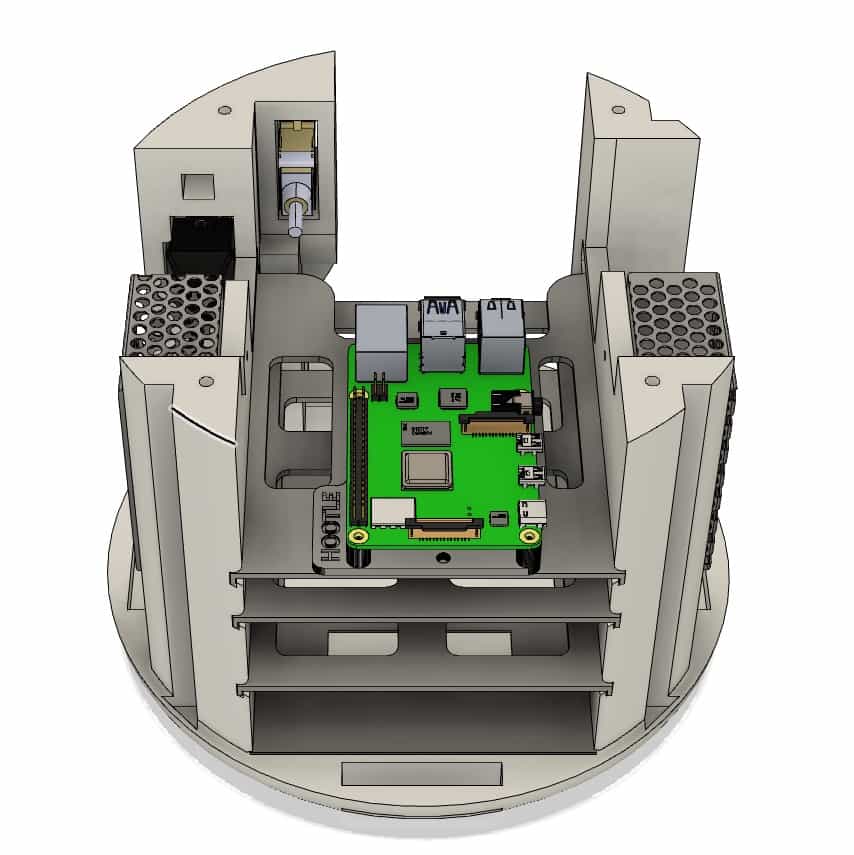

Top View without fan mounted, exposing the inside of the chassis

Prototypes

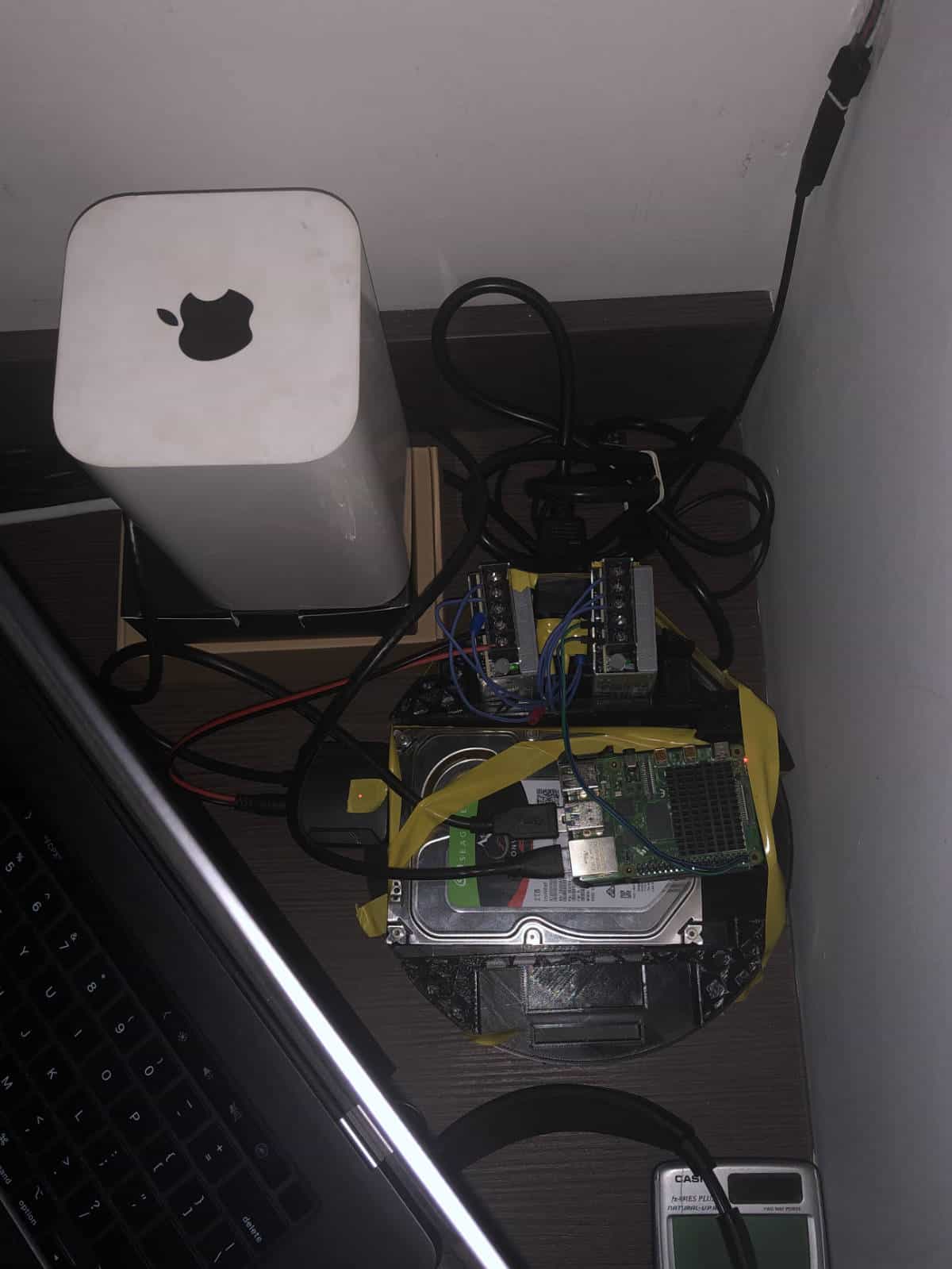

Failed prototype being used as a test bench
Failed prototype; Very difficult to remove 3D printing supports

Assembly

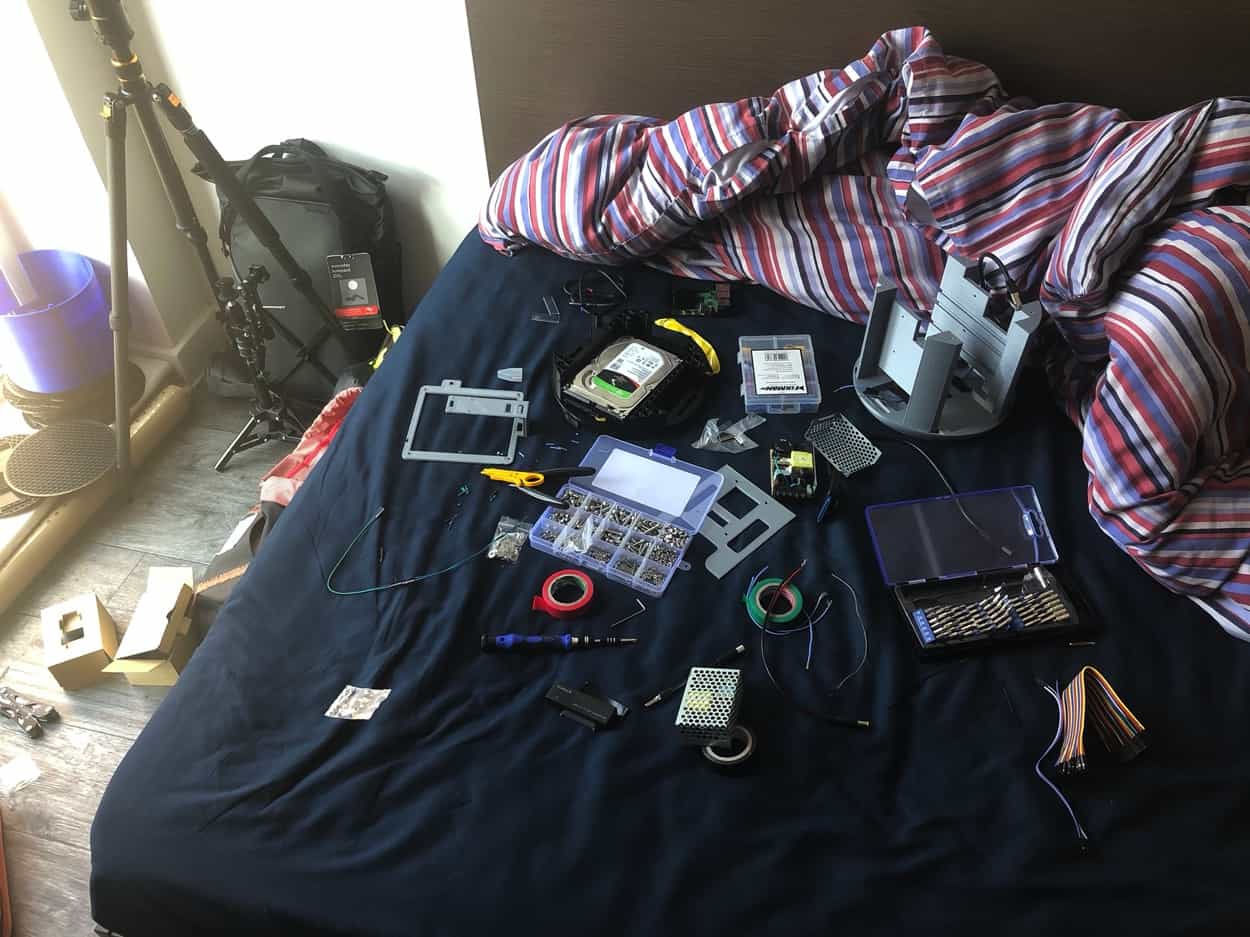

My Workbench...work-bed...bed

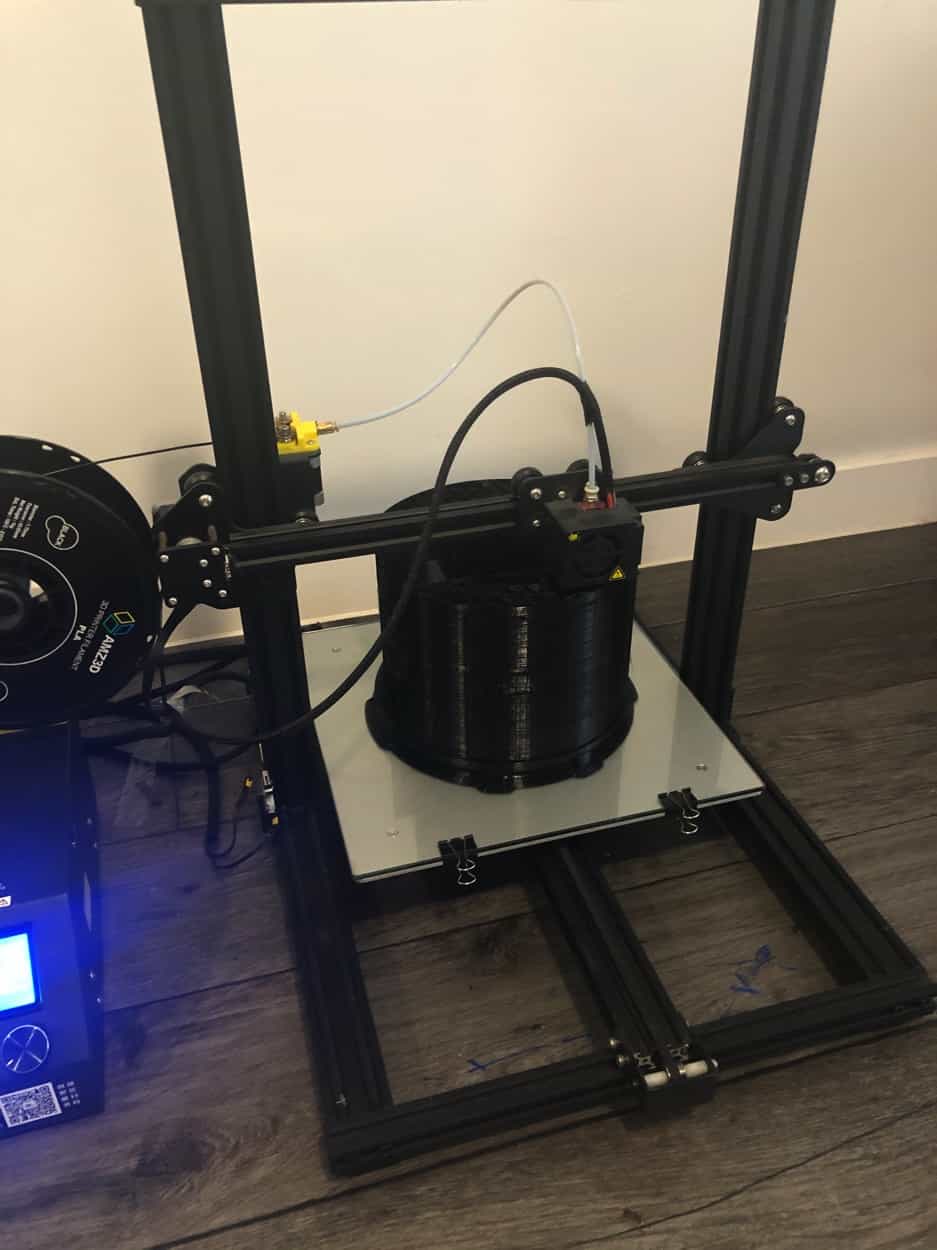

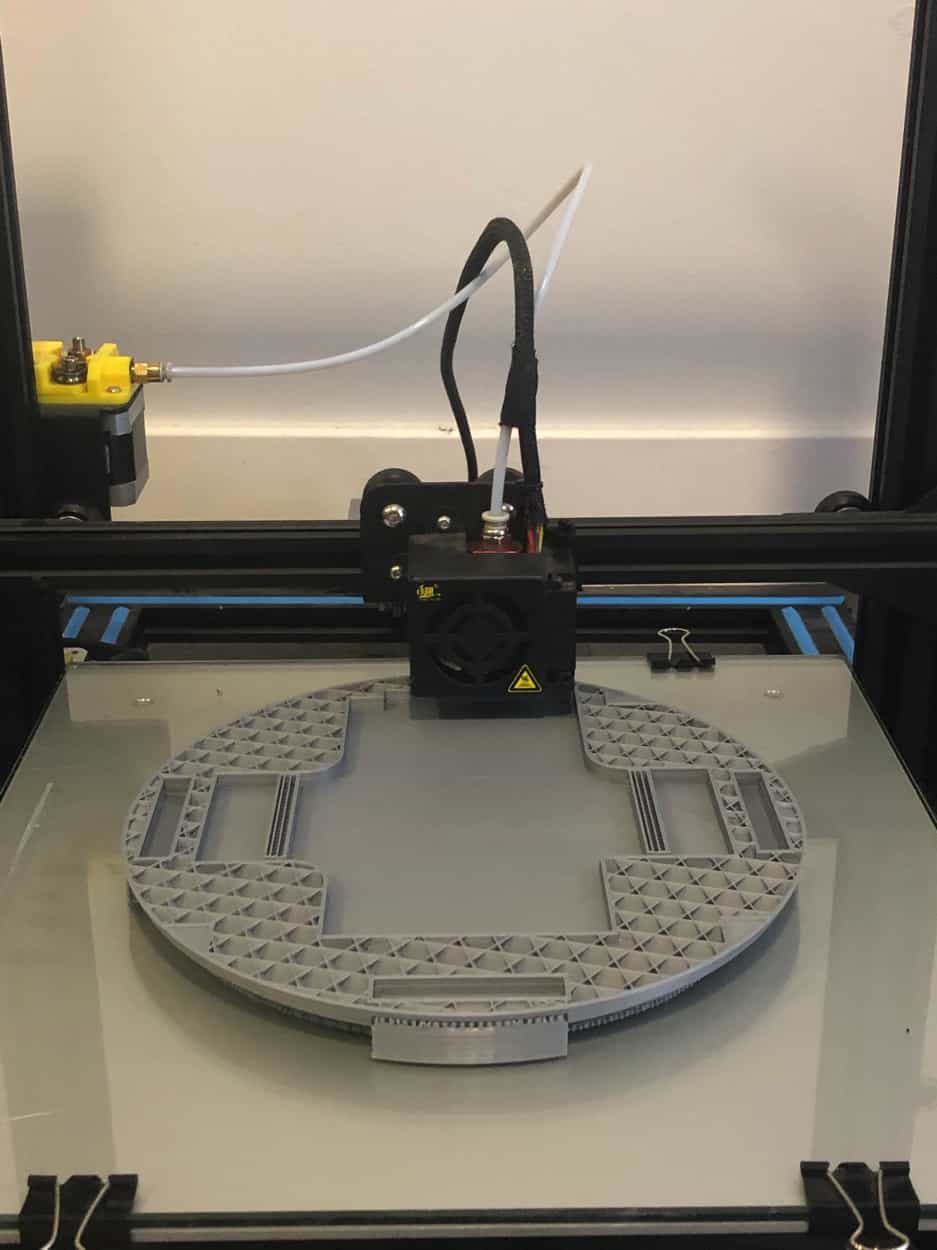

Printing PiServer 1.0

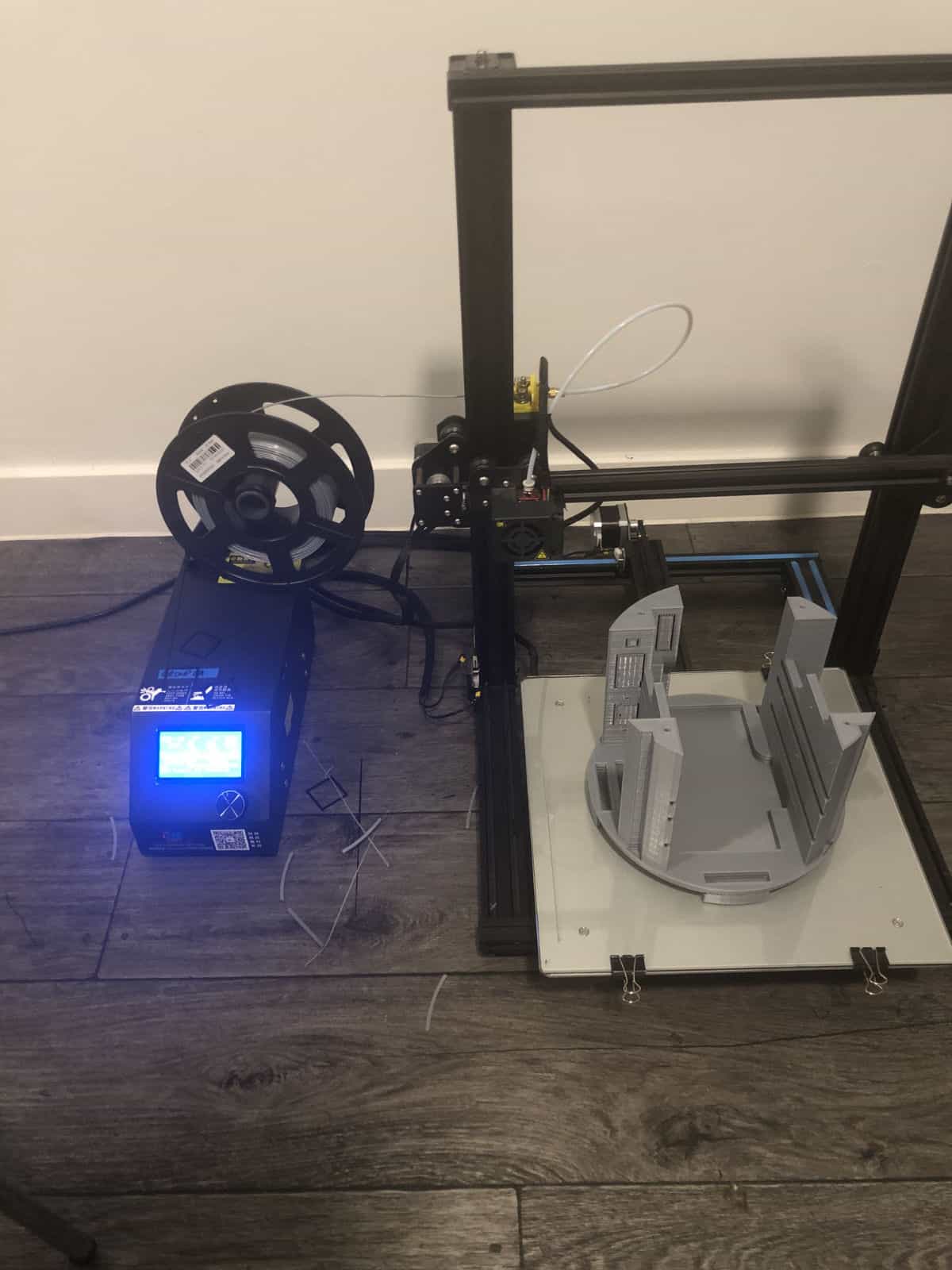

PiServer 1.0 print complete. Print time: 2 Days, 20 Hours

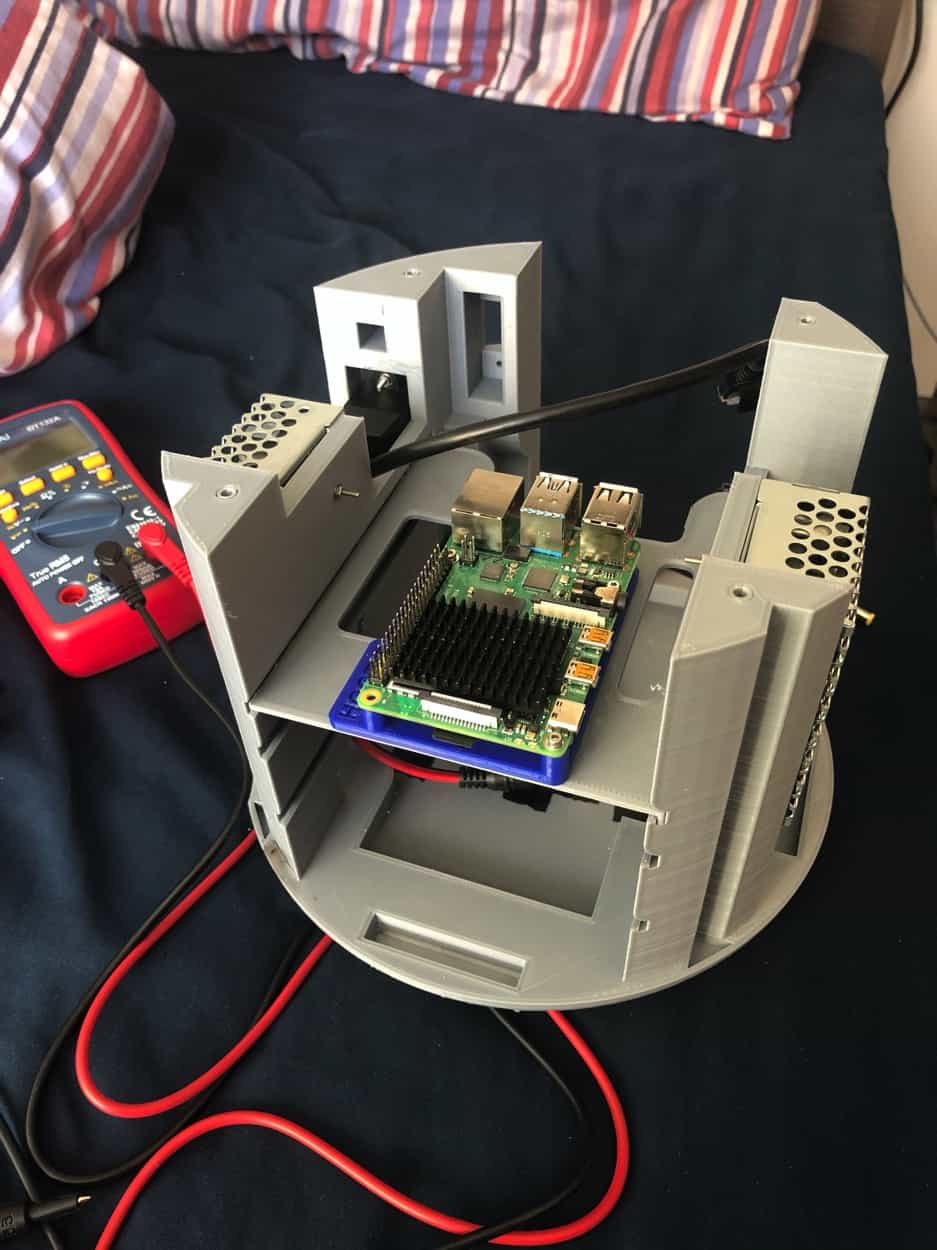

PiServer top tray with Raspberry Pi 4.

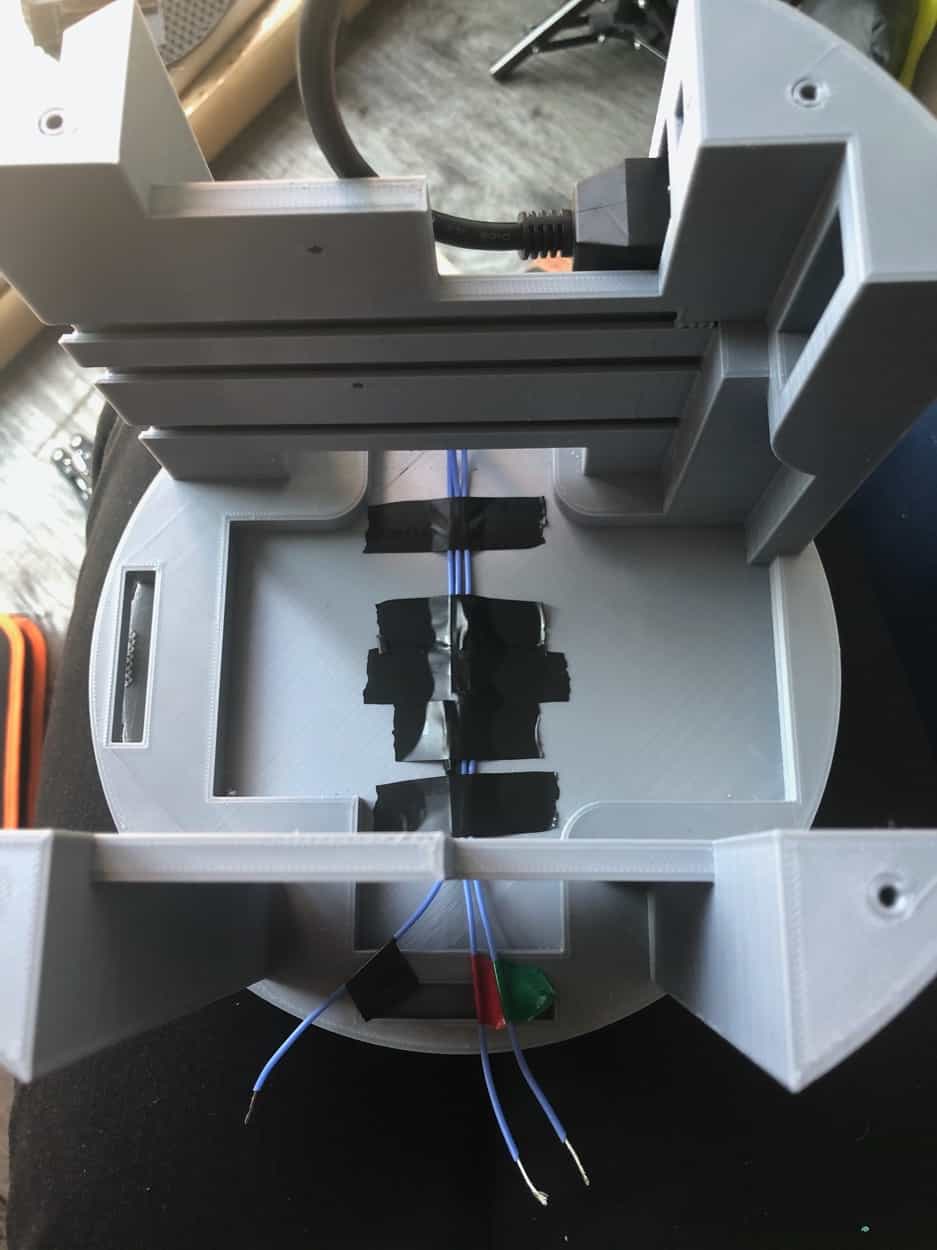

Laying wires in recessed wire area.

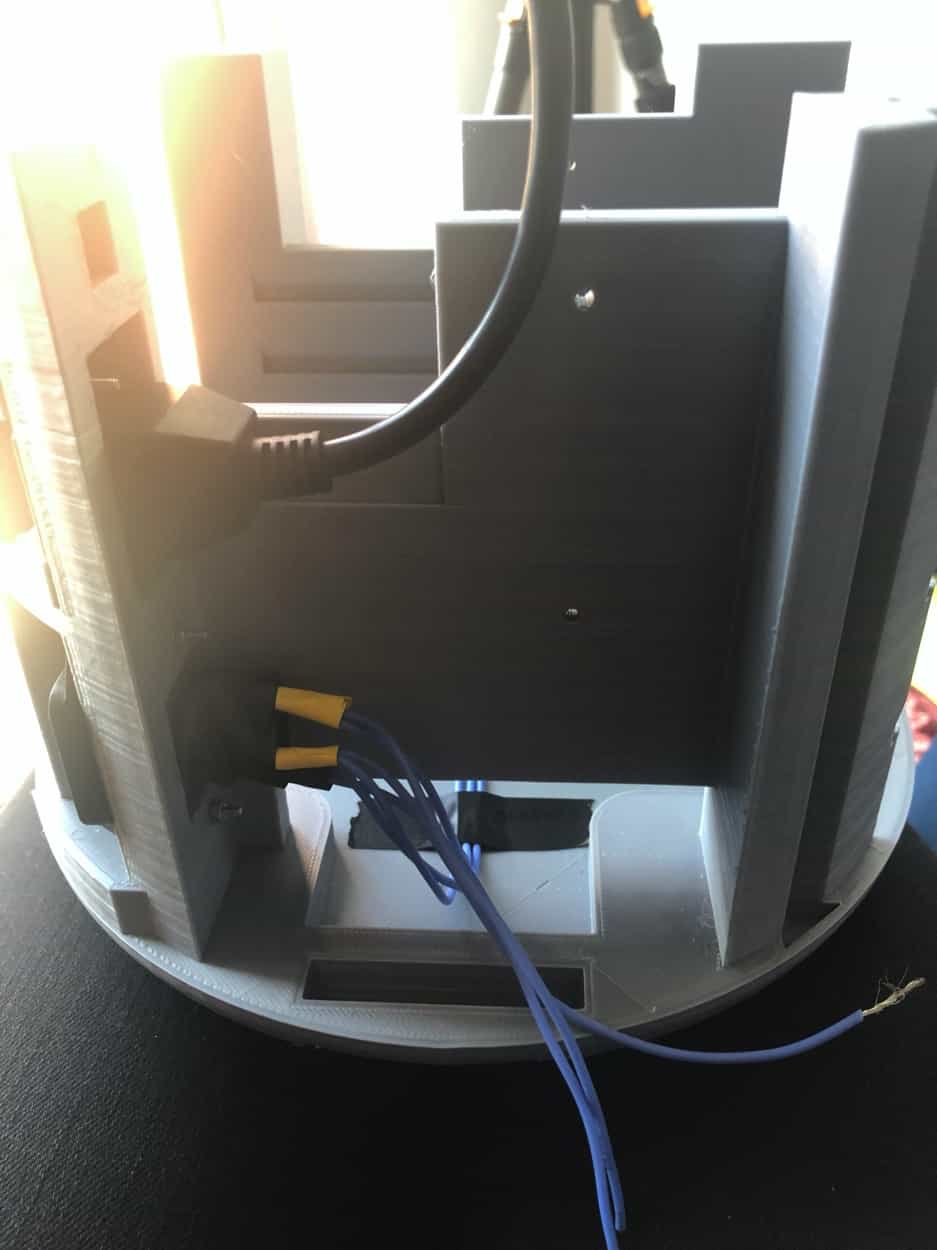

Wiring up the left side.

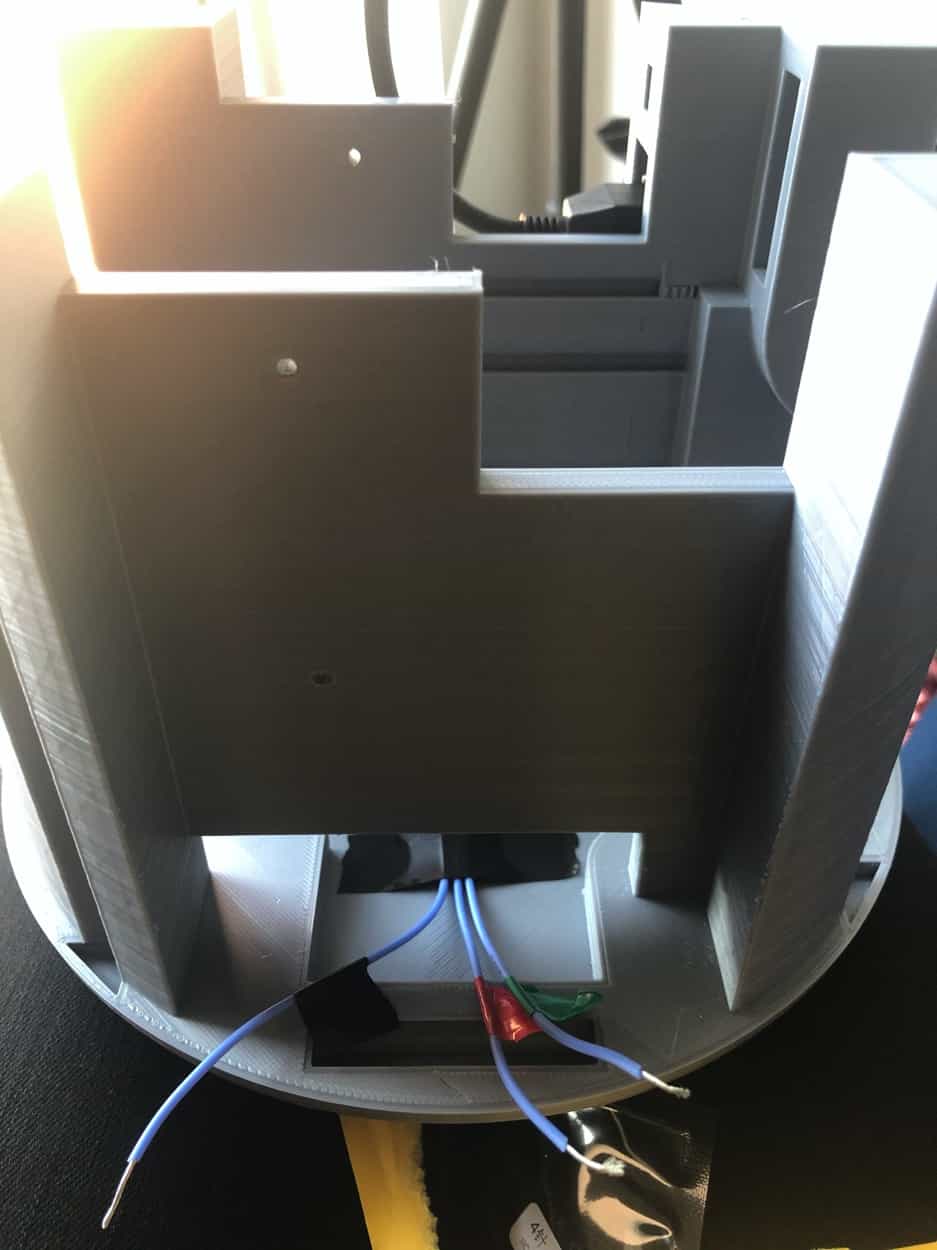

Wiring up the right side.

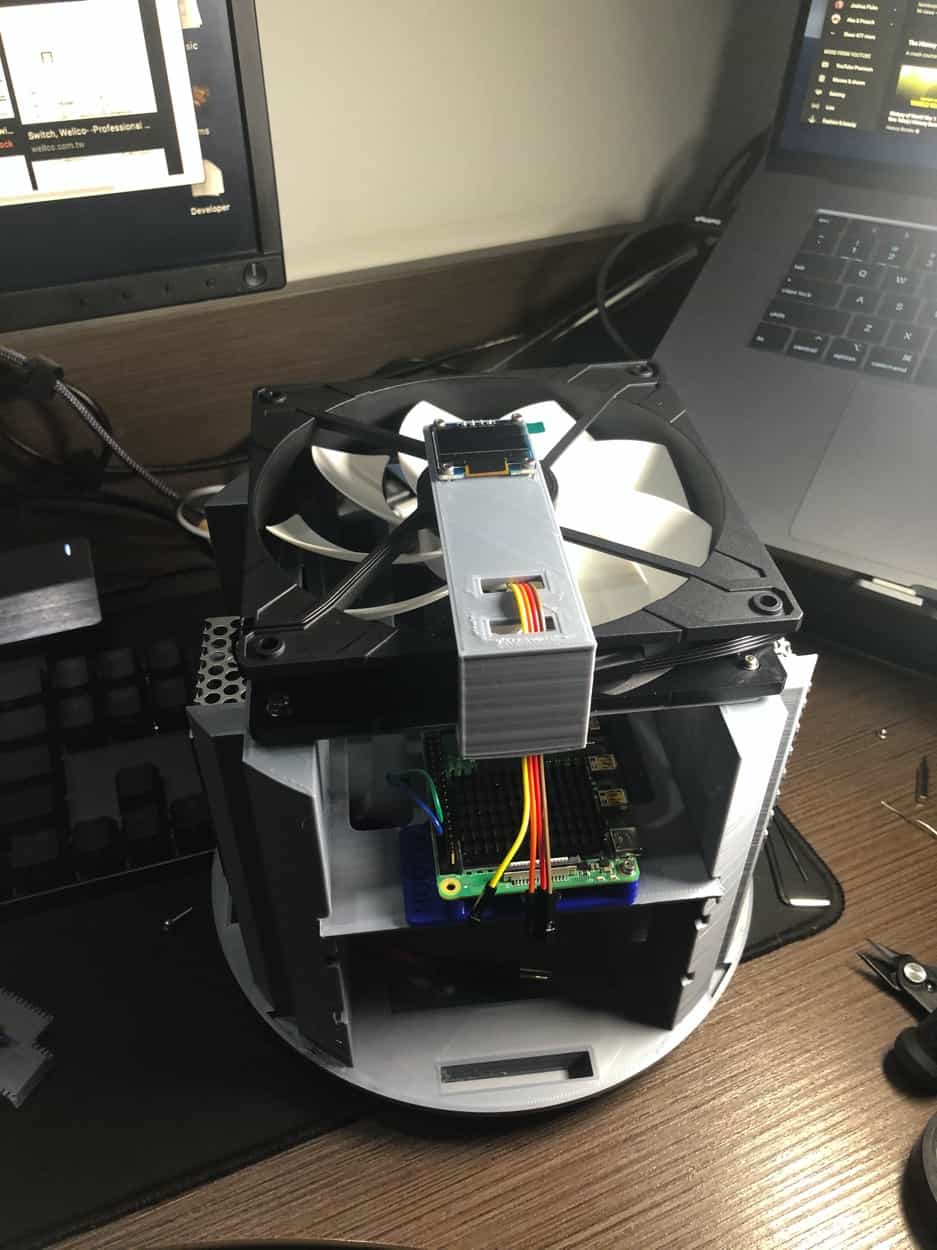

Mounting the fan on PiServer.

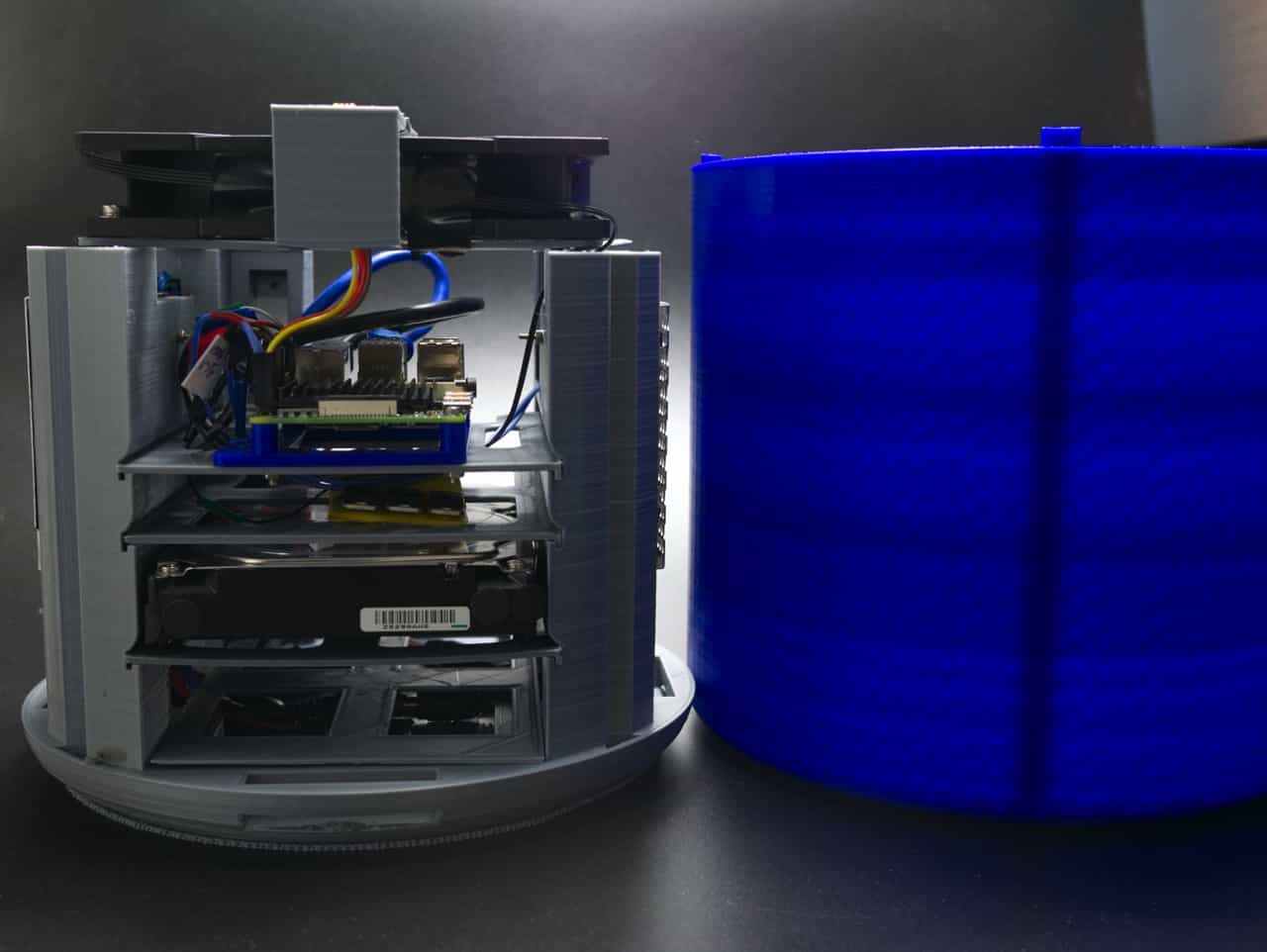

Placing PiServer outer casing; Very gracious tolerance given to avoid needing to print another.

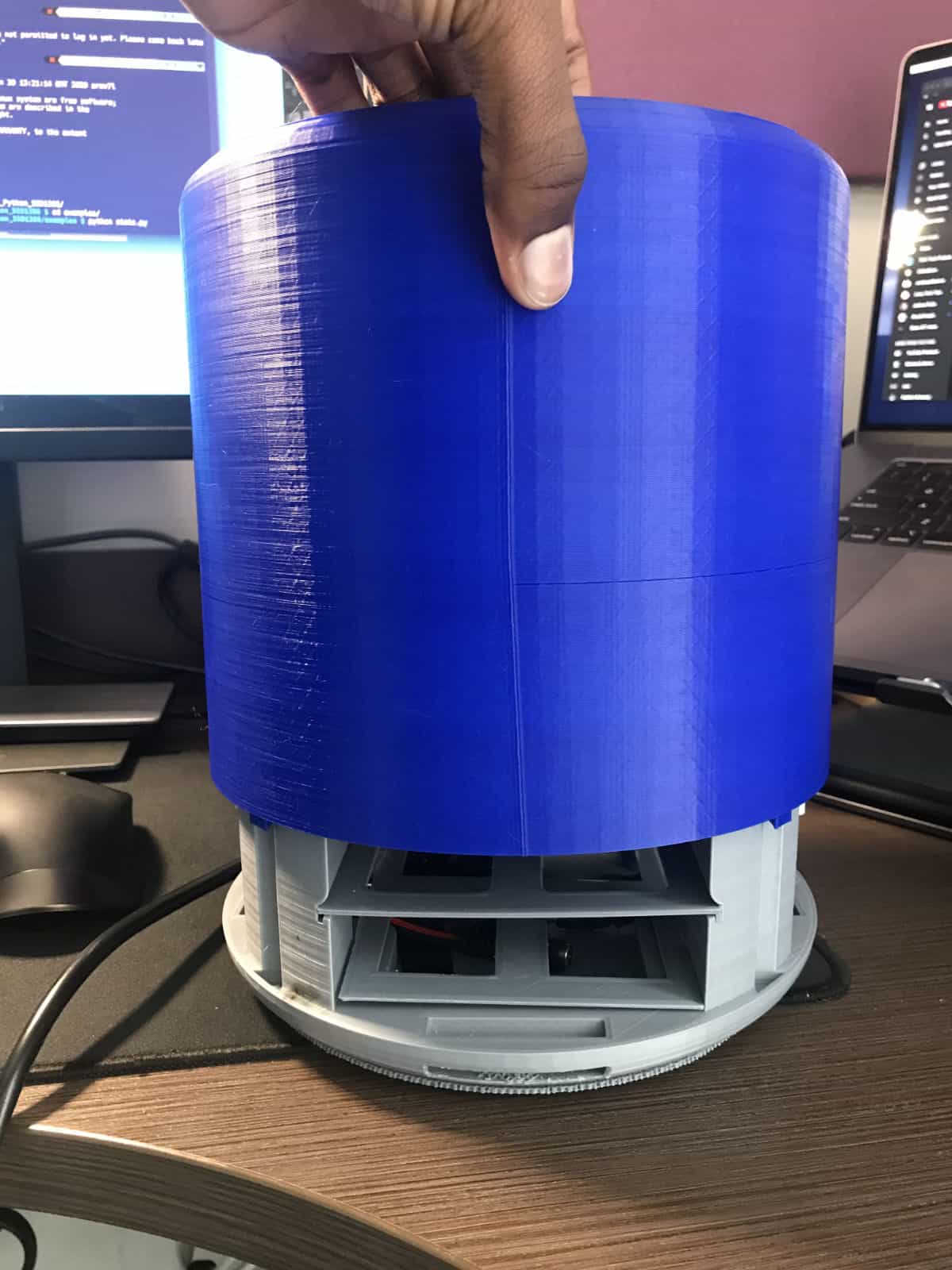

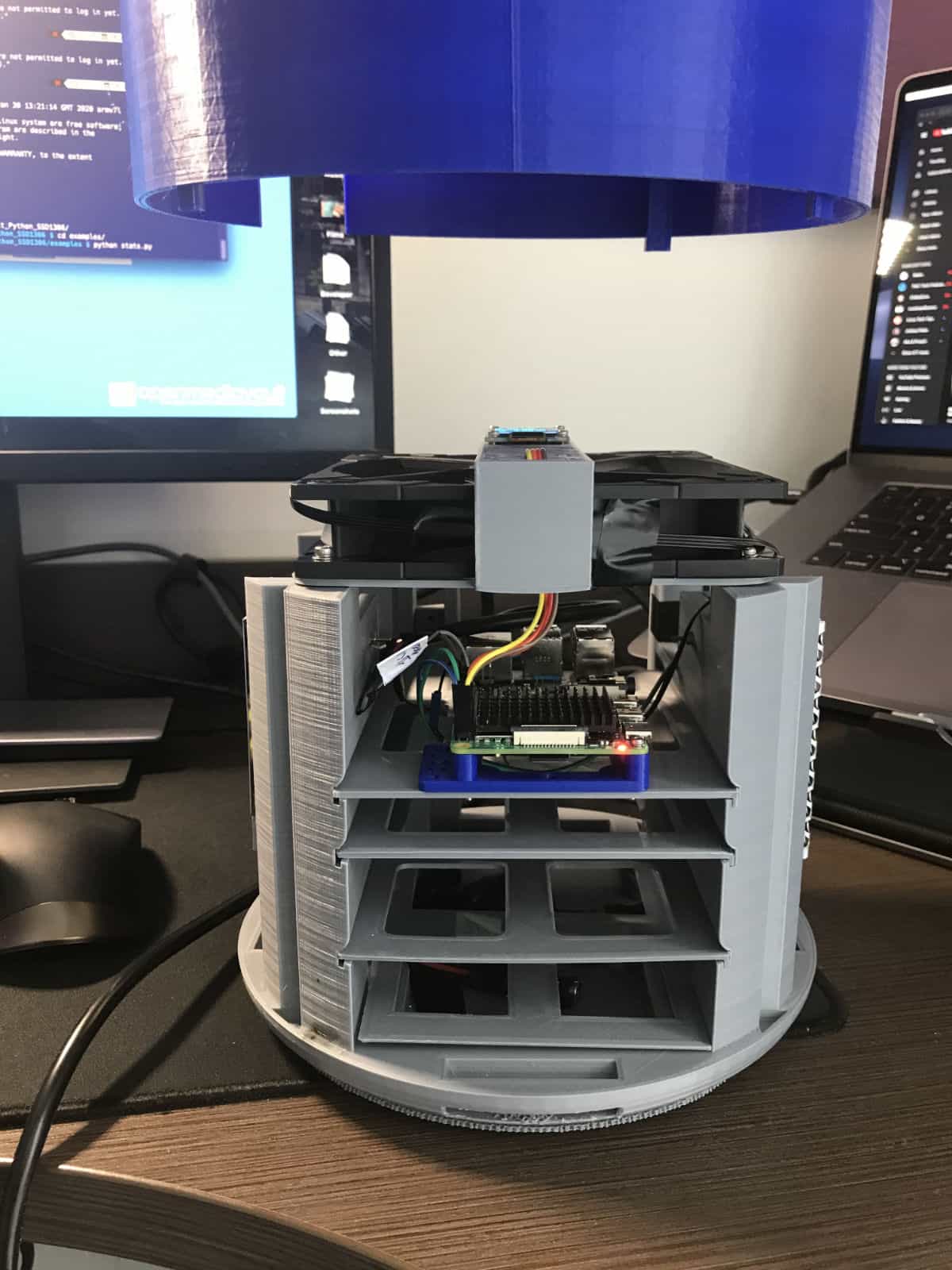

PiServer with its outer casing hovering above it.

Reddit-fame

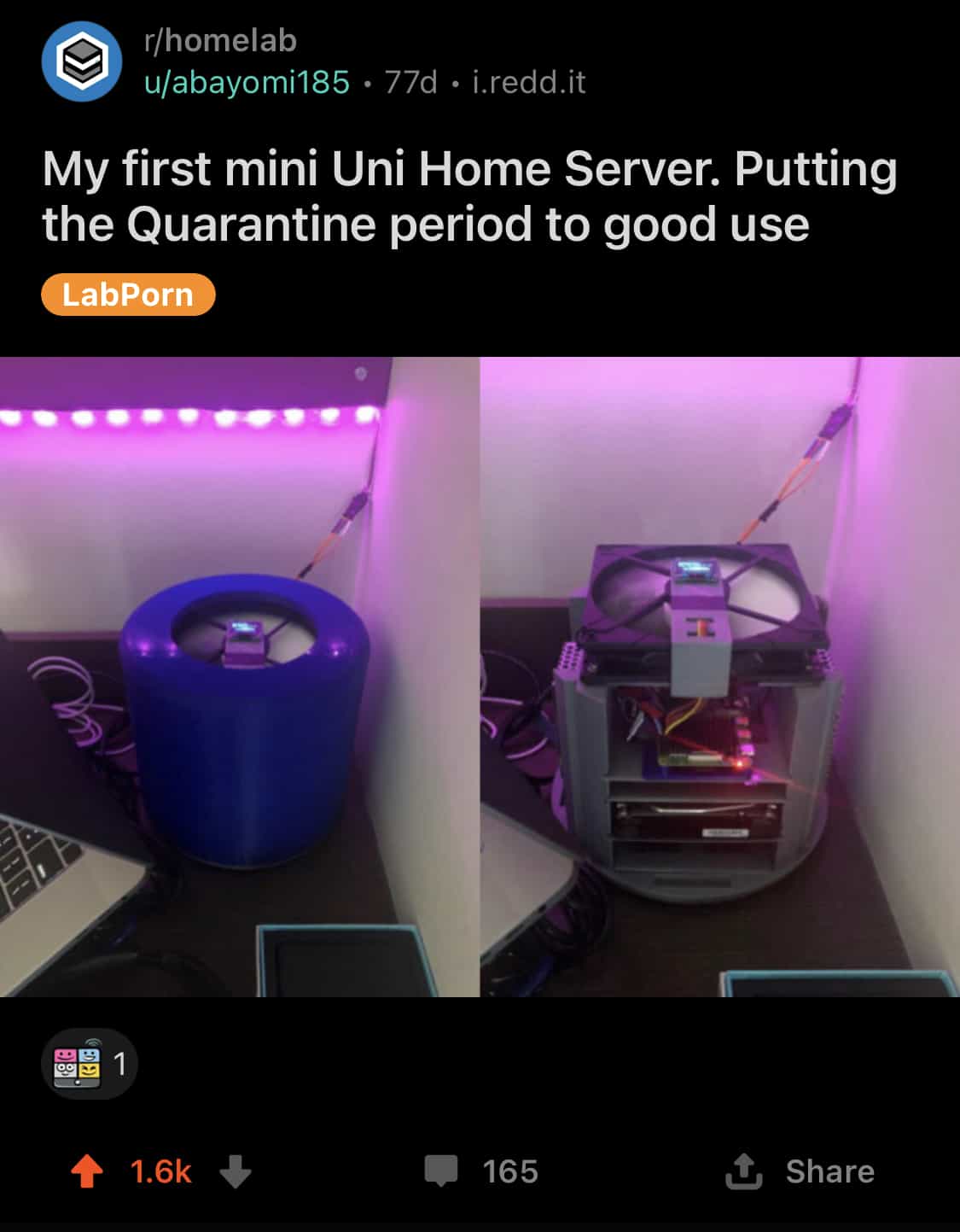

PiServer post on r/homelab subreddit

Videos

OLED & Fan Software Setup
Initial introductory video to Instagram Story
CAD Design Animation of an intial prototype design
Extra Clips
